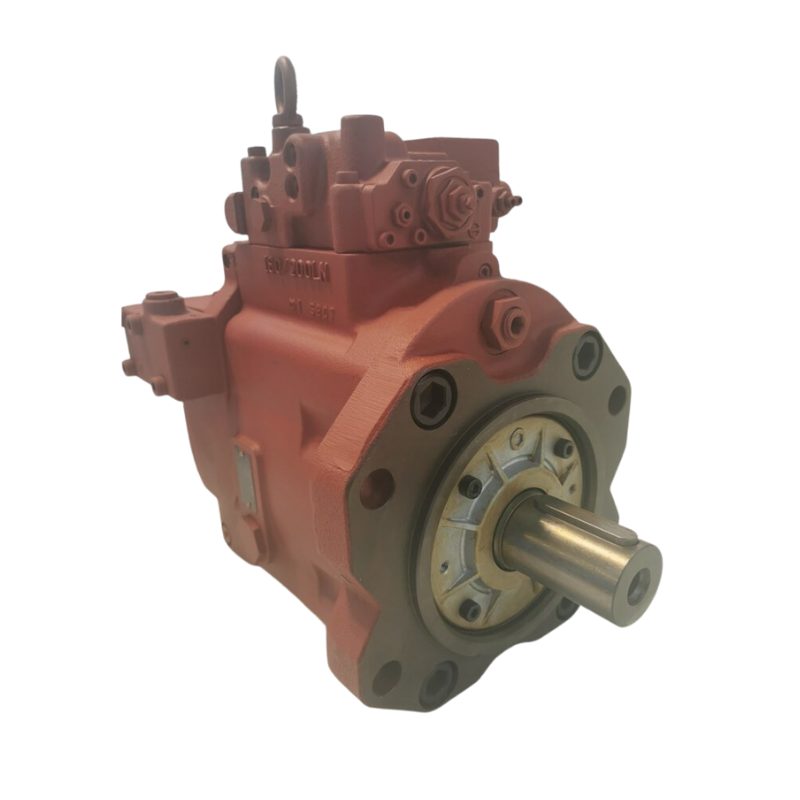

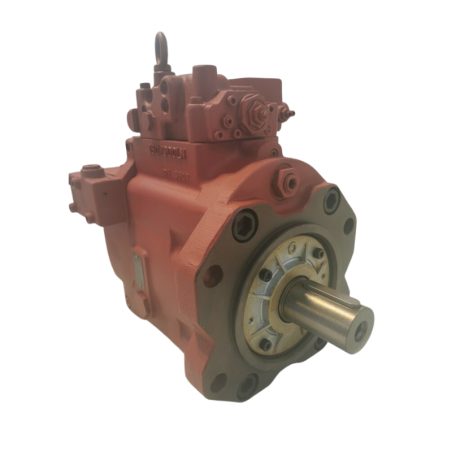

Kawasaki K3VG180-10NRS-7LH2 piston pump

Name: Kawasaki K3VG180-10NRS-7LH2 piston pump
Brand: Kawasaki
SKU: KW.293P10NS7LH2
Price: 12296.85 EUR
Availability: InStock

€12,296.85

Price including VAT at the legal rate

(9997.44 € Excluding VAT. VAT at the legal rate applies.)

Kawasaki K3VG variable displacement axial piston pump, 180 cc/rev, with load sensing control.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. KW.293P10NS7LH2

€9,997.44 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Swashplate axial piston pump from the K3VG series, for industrial open circuits, with 180 cc/rev maximum displacement. The series was designed for installations where noise, efficiency and service life matter: hydrostatically supported swashplate, spherical valve plate and heavy-duty bearings.

Rated pressure: 350 bar; peak: 400 bar
Maximum self-priming speed: 1,850 rpm (2,300 rpm with boosted inlet)
Weight: about 86 kg

From the code: 0, no gear pump attached; N, no bracket and no port flanges; R, right-hand rotation; 7L, power control and constant pressure with load sensing; H2, power in the high range.

Source: Kawasaki K3VG technical data sheet, version P-1001/03.04; Kawasaki K3VG brochure, P-969-0098 SG3M 2/01.
