Aber BI, BIF and BID bent-axis piston pumps, single and double flow, from 40 to 160 cm³.

Model: BI 40-M
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.BI40M

€884.23 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: Splined shafts on pumps and motors: SAE, DIN 5480 and DIN 5482

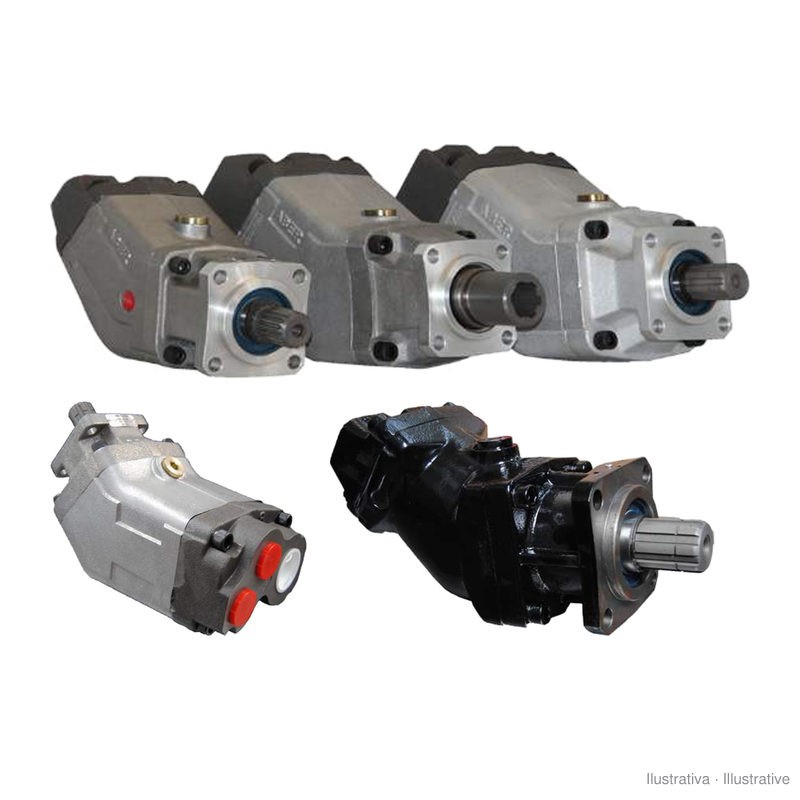

Aber bent-axis piston pumps, made in Portugal, for mounting on truck and tractor power take-offs. The direction of rotation can be changed on the pump itself.

  • BI: 42 to 156 cm³ (BI 40 to BI 160); up to 350 bar on most, 300 bar on the BI 80-M7 and BI 125-P7 and 250 bar on the BI 135-P7
  • BIF: cast iron body and compact design, 50 to 81 cm³; up to 400 bar on the BIF 50 and BIF 60 and 350 bar on the BIF 80
  • BID: two independent outlets, for two separate circuits (40+40, 55+55, 57+28, 70+70 and 80+40 cm³); up to 350 bar, 300 bar on the 70+70

The standard version has an ISO 7653 flange and DIN 5462 shaft; DA versions have the DIN 9611 6-spline agricultural shaft and DI versions the DIN 9611 internal shaft. Before ordering, check the pump reference on the nameplate, the shaft and the direction of rotation.

Source: Aber Catalogue (English) technical catalogue, 2016.

1.BI40M

Specific References

Internal barcode
2200008311001

1 other product in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (22)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
BI 40-M
1.BI40M
Last units
BI 50-M
1.BI50M
On request
BI 60-M7 reinforced
1.BI60M7
On request
BI 80-M7 standard
1.BI80M7
On request
BI 80-P7 reinforced
1.BI80P7
On request
BI 110-P7
1.BI110P7
Last units
BI 110-P7 DA (6-spline agricultural shaft)
1.BI110P7DA
On request
BI 110-P7 DI (internal 6-spline agricultural shaft)
1.BI110P7DI
On request
BI 125-P7
1.BI125P7
Last units
BI 135-P7
1.BI135P7
On request
BI 140-C (with rotation)
1.BI140H9
On request
BI 160-H9
1.BI160H9
On request
BI 160-H9 DA (6-spline agricultural shaft)
1.BI160H9DA
On request
BID 40+40 cm³ (two outlets)
1.BID4040P
On request
BID 55+55 cm³ (two outlets)
1.BID5555H
Last units
BID 57+28 cm³ (two outlets)
1.BID5728P
On request
BID 57+28 cm³ (two outlets) PR
1.BID57X28PR
On request
BID 70+70 cm³ (two outlets)
1.BID7070H
On request
BID 80+40 cm³ (two outlets)
1.BID8040H
On request
BIF 50-M standard
1.BIF50M
On request
BIF 60-M7 reinforced
1.BIF60M7
On request
BIF 80-M7 reinforced
1.BIF80M7
On request
