Rexroth A17FO axial piston pump

€1,403.17
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(1140.79 € Excluding VAT. VAT at the legal rate applies.)

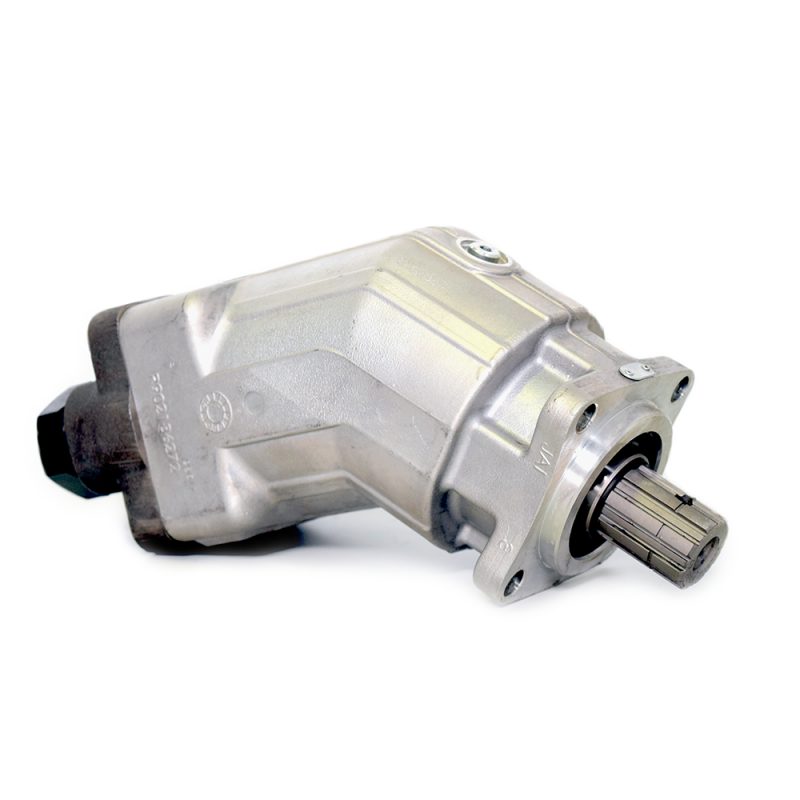

Rexroth A17FO bent-axis axial piston pump, fixed displacement, for truck power take-offs. 23 to 107 cm³, 350 bar nominal pressure.

A17FO: 23 cc
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2821.23

€1,140.79 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: Splined shafts on pumps and motors: SAE, DIN 5480 and DIN 5482

The A17FO is a bent-axis fixed displacement piston pump for open circuits, designed to mount directly on the power take-off of commercial vehicles, for example on cranes and tippers. It has a die-cast aluminium housing and needs no case drain line.

  • Nominal pressure: 350 bar; maximum: 400 bar
  • Special ISO 7653 truck flange and splined shaft similar to DIN ISO 14
  • Anticlockwise rotation, viewed on the shaft; Rexroth explains in the instructions how to change it
  • FKM seals; HLP mineral oil

Versions available (Rexroth code and material number, flow at nominal speed):

  • A17FO023/10NLWK0E81-0 (R902230072): 22.9 cm³/rev, 70 l/min at 3050 rpm
  • A17FO032/10NLWK0E81-0 (R902230073): 32 cm³/rev, 88 l/min at 2750 rpm
  • A17FO045/10NLWK0E81-0 (R902162392): 45.6 cm³/rev, 121 l/min at 2650 rpm
  • A17FO063/10NLWK0E81-0 (R902162394): 63 cm³/rev, 139 l/min at 2200 rpm
  • A17FO080/10NLWK0E81-0 (R902330076): 80.4 cm³/rev, 173 l/min at 2150 rpm
  • A17FO107/10NLWK0E81-0 (R902230071): 106.7 cm³/rev, 213 l/min at 2000 rpm

Before ordering, check the code on the pump nameplate and the direction of rotation. The Rexroth catalogue is in the attachments.

Source: Rexroth A17FO technical data sheet, version RE 91520/2026-08-18.
