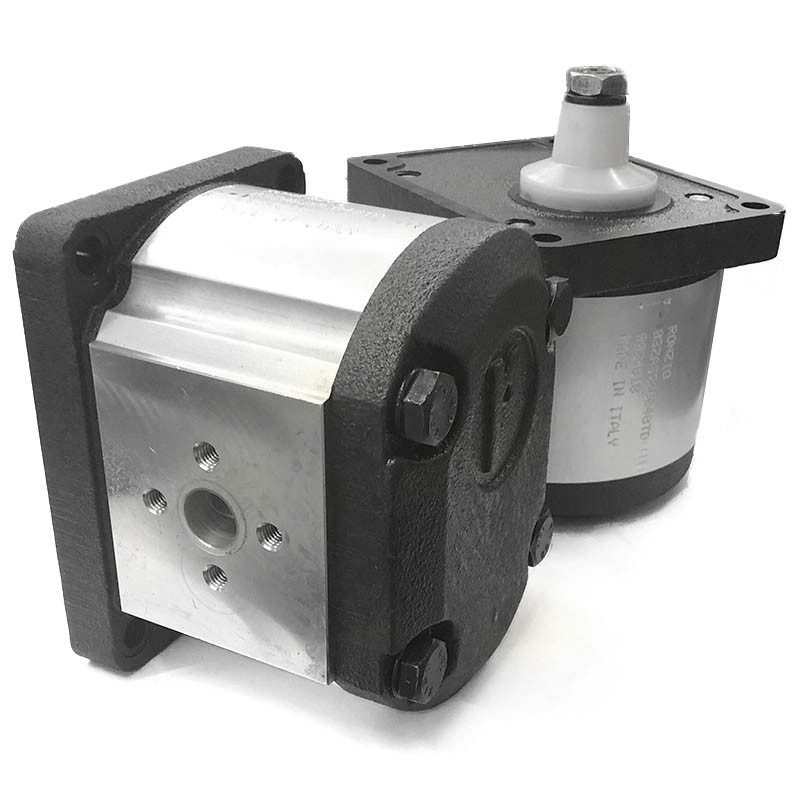

Ronzio Z3 gear pump (group 3)
search
  • Ronzio Z3 gear pump (group 3)

Ronzio Z3 gear pump (group 3)

€639.31
Tax included Delivery in 1 to 5 working days.

(519.77 € No tax)

Ronzio Z3 external gear pump (group 3), aluminium body, 19.9 to 89.6 cm³/rev and up to 280 bar. Single, front or middle pump for multiple units.

Pump type: Standard
Direction of rotation: Clockwise (right hand)
Flange type: European (rectangular, small pilot)
Flange size: Group 3
Shaft: C tapered 1:8 M14
Displacement: 70.0 cm³/rev
Ports: European flanged Ø33 / Ø27
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.3013.A70C047D

€519.77 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The Z3 is Ronzio's group 3 pump, with an extruded aluminium body and cast iron covers, for higher flows: at 1500 rpm it delivers from about 30 to 134 l/min.

In the options you choose the type (single, front pump of a multiple unit or middle pump), the direction of rotation, the flange (European or 2-bolt SAE B), the shaft (1:8 M14 tapered or 13-tooth 7/8" SAE B splined), the displacement and the ports (European flanged Ø27 / Ø19 or Ø33 / Ø27, or 4-bolt SAE 1" / 3/4").

  • Displacements: 19.9 to 89.6 cm³/rev
  • Maximum continuous pressure: 280 bar up to 34.3 cm³/rev; 200 bar on the 63.9; 160 bar on the 89.6
  • Mineral oil, -10 °C to 80 °C

To replace a pump, check the code on the nameplate, the direction of rotation, the flange and the shaft.

Source: Ronzio Z3 (Aluminium Pumps and Motors) technical catalogue, revision 03.16.

1.3013.A70C047D

Specific References

ean13
2200111623114

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (80)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 19.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A20C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 24.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A25C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 29.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A30C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 34.3 cm³/rev - European flanged Ø27 / Ø19
1.3013.A35C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 40.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A40C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 45.2 cm³/rev - European flanged Ø27 / Ø19
1.3013.A45C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 49.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A50C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 54.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A55C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 63.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A64C048D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 70.0 cm³/rev - European flanged Ø33 / Ø27
1.3013.A70C047D
Last units
€639.31
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 78.7 cm³/rev - European flanged Ø33 / Ø27
1.3013.A80C047D
On request
Standard - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 89.6 cm³/rev - European flanged Ø33 / Ø27
1.3013.A90C047D
Last units
€639.86
Standard - Clockwise (right hand) - SAE 2 bolt - SAE A (group 3) - B splined 13 teeth 7/8" SAE B - 34.3 cm³/rev - SAE 4 bolt 1" / 3/4"
1.3013.B35B256D
On request
Standard - Clockwise (right hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 24.9 cm³/rev - SAE 4 bolt 1" / 3/4"
1.3013.B25B356D
On request
Standard - Clockwise (right hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 29.9 cm³/rev - SAE 4 bolt 1" / 3/4"
1.3013.B30B356D
On request
Standard - Clockwise (right hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 34.3 cm³/rev - SAE 4 bolt 1" / 3/4"
1.3013.B35B356D
Last units
€578.16
Standard - Clockwise (right hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 45.2 cm³/rev - SAE 4 bolt 1 1/4" / 1"
1.3013.B45B358D
On request
Standard - Clockwise (right hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 49.9 cm³/rev - SAE 4 bolt 1 1/4" / 1"
1.3013.B50B358D
On request
Standard - Clockwise (right hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 54.5 cm³/rev - SAE 4 bolt 1 1/2" / 1 1/4"
1.3013.B55B360D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 19.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A20C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 24.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A25C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 29.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A30C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 34.3 cm³/rev - European flanged Ø27 / Ø19
1.3013.A35C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 40.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A40C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 45.2 cm³/rev - European flanged Ø27 / Ø19
1.3013.A45C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 49.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A50C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 54.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A55C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 63.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A64C048D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 70.0 cm³/rev - European flanged Ø33 / Ø27
1.3013.A70C047D
Last units
€639.31
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 78.7 cm³/rev - European flanged Ø33 / Ø27
1.3013.A80C047D
On request
Standard - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 89.6 cm³/rev - European flanged Ø33 / Ø27
1.3013.A90C047D
Last units
€639.86
Standard - Anti-clockwise (left hand) - SAE 2 bolt - SAE A (group 3) - B splined 13 teeth 7/8" SAE B - 34.3 cm³/rev - SAE 4 bolt 1" / 3/4"
1.3013.B35B256D
On request
Standard - Anti-clockwise (left hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 24.9 cm³/rev - SAE 4 bolt 1" / 3/4"
1.3013.B25B356D
On request
Standard - Anti-clockwise (left hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 29.9 cm³/rev - SAE 4 bolt 1" / 3/4"
1.3013.B30B356D
On request
Standard - Anti-clockwise (left hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 34.3 cm³/rev - SAE 4 bolt 1" / 3/4"
1.3013.B35B356D
Last units
€578.16
Standard - Anti-clockwise (left hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 45.2 cm³/rev - SAE 4 bolt 1 1/4" / 1"
1.3013.B45B358D
On request
Standard - Anti-clockwise (left hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 49.9 cm³/rev - SAE 4 bolt 1 1/4" / 1"
1.3013.B50B358D
On request
Standard - Anti-clockwise (left hand) - SAE 2 bolt - SAE B (group 3) - B splined 13 teeth 7/8" SAE B - 54.5 cm³/rev - SAE 4 bolt 1 1/2" / 1 1/4"
1.3013.B55B360D
On request
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 19.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A20C048AD
Last units
€653.56
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 24.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A25C048AD
Last units
€657.03
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 29.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A30C048AD
Last units
€723.52
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 34.3 cm³/rev - European flanged Ø27 / Ø19
1.3013.A35C048AD
Last units
€722.70
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 40.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A40C048AD
Last units
€739.50
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 45.2 cm³/rev - European flanged Ø27 / Ø19
1.3013.A45C048AD
Last units
€740.76
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 49.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A50C048AD
Last units
€740.76
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 54.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A55C048AD
On request
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 63.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A64C048AD
Last units
€773.59
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 70.0 cm³/rev - European flanged Ø33 / Ø27
1.3013.A70C047AD
Last units
€636.35
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 78.7 cm³/rev - European flanged Ø33 / Ø27
1.3013.A80C047AD
On request
Front pump (multiple unit) - Clockwise (right hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 89.6 cm³/rev - European flanged Ø33 / Ø27
1.3013.A90C047AD
Last units
€639.86
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 19.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A20C048AD
Last units
€653.56
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 24.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A25C048AD
Last units
€657.03
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 29.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A30C048AD
Last units
€723.52
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 34.3 cm³/rev - European flanged Ø27 / Ø19
1.3013.A35C048AD
Last units
€722.70
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 40.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A40C048AD
Last units
€739.50
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 45.2 cm³/rev - European flanged Ø27 / Ø19
1.3013.A45C048AD
Last units
€740.76
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 49.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A50C048AD
Last units
€740.76
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 54.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A55C048AD
On request
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 63.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A64C048AD
Last units
€773.59
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 70.0 cm³/rev - European flanged Ø33 / Ø27
1.3013.A70C047AD
Last units
€636.35
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 78.7 cm³/rev - European flanged Ø33 / Ø27
1.3013.A80C047AD
On request
Front pump (multiple unit) - Anti-clockwise (left hand) - European (rectangular, small pilot) - Group 3 - C tapered 1:8 M14 - 89.6 cm³/rev - European flanged Ø33 / Ø27
1.3013.A90C047AD
Last units
€639.86
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 19.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A200048ID
Last units
€712.68
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 24.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A250048ID
Last units
€712.68
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 29.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A300048ID
Last units
€712.68
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 34.3 cm³/rev - European flanged Ø27 / Ø19
1.3013.A350048ID
Last units
€521.06
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 40.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A400048ID
Last units
€569.34
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 45.2 cm³/rev - European flanged Ø27 / Ø19
1.3013.A450048ID
In stock
€547.48
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 49.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A500048ID
In stock
€537.42
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 54.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A550048ID
Last units
€547.48
Intermediate stage - Clockwise (right hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 63.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A640048ID
On request
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 19.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A200048ID
Last units
€712.68
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 24.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A250048ID
Last units
€712.68
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 29.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A300048ID
Last units
€712.68
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 34.3 cm³/rev - European flanged Ø27 / Ø19
1.3013.A350048ID
Last units
€521.06
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 40.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A400048ID
Last units
€569.34
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 45.2 cm³/rev - European flanged Ø27 / Ø19
1.3013.A450048ID
In stock
€547.48
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 49.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A500048ID
In stock
€537.42
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 54.5 cm³/rev - European flanged Ø27 / Ø19
1.3013.A550048ID
Last units
€547.48
Intermediate stage - Anti-clockwise (left hand) - No flange (intermediate) - Group 3 - No shaft (intermediate) - 63.9 cm³/rev - European flanged Ø27 / Ø19
1.3013.A640048ID
On request
