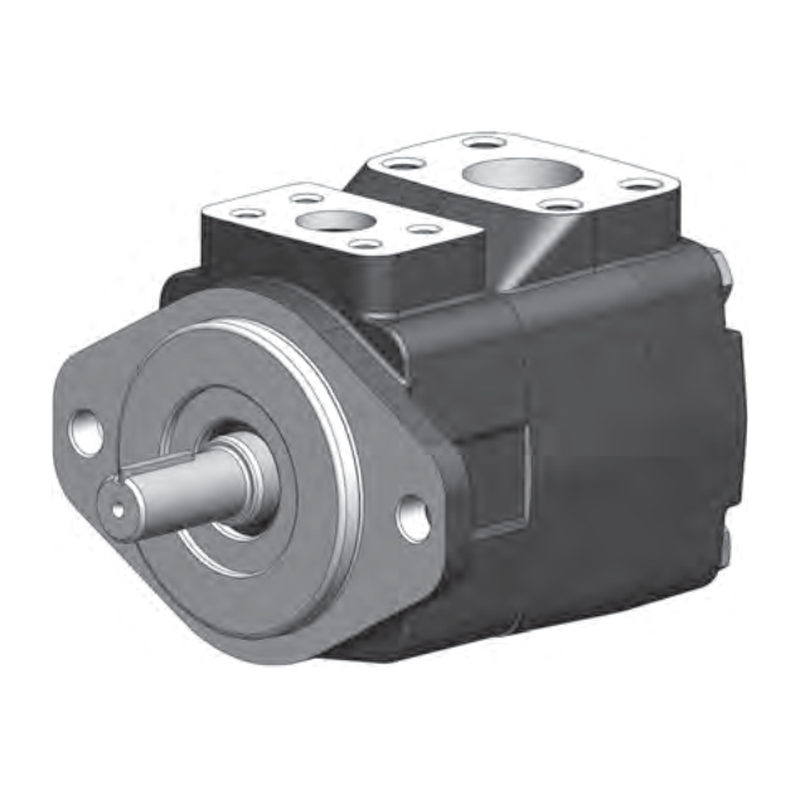

B&C BV02G21A01 vane pump

* Price on request *

Tax included

B&C BV02 fixed vane pump with cartridge 21: 67.5 cc/rev, up to 175 bar, straight keyed shaft.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5240.BV02G21A01

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Fixed displacement vane pump from the B&C BV series, for industrial power units. All the wear parts (rotor, vanes, ring and covers) are in a cartridge that can be changed without removing the pump from the circuit. The 12-vane rotor makes this series quieter.

V02-21 cartridge: 67.5 cc/rev
Rated flow at 7 bar: 79 l/min at 1200 rpm and 99.8 l/min at 1500 rpm
Maximum pressure with mineral oil: 175 bar
Speed: from 600 to 1800 rpm
A = outlet opposite inlet; 01 = straight keyed shaft
Weight: about 15 kg

Without an L in the code, it rotates clockwise viewed from the shaft. The drive must be coaxial, through a flexible coupling.

Source: B&C BV series technical catalogue, 2008.

Reference 1.5240.BV02G21A01
