Borelli bearing support for gear pump

€89.42
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(72.7 € Excluding VAT. VAT at the legal rate applies.)

Borelli bearing supports for group 1, 2 and 3 gear pumps.

Bearing support: GR.1 (25601)
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0663.1

€72.70 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

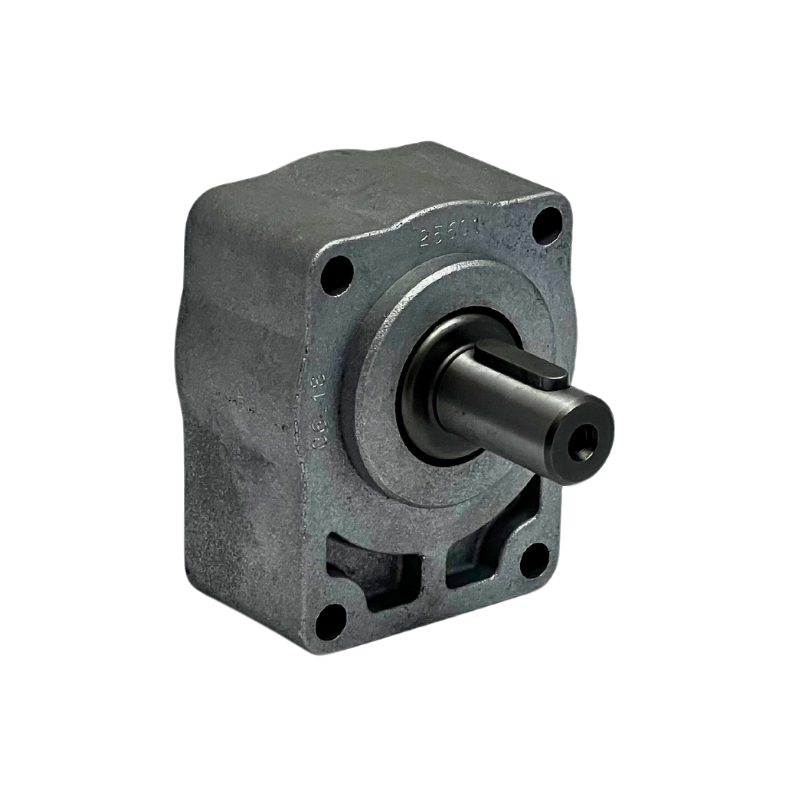

The bearing support (belt-drive support) fits between the gear pump and the drive when the pump is driven by belt or chain, with heavy radial loads the pump cannot take on its own. The support bolts to the pump flange and connects to its shaft through a splined half coupling; the support bearing takes the pulley load.

The list shows the versions available, by pump group and shaft: group 1; group 2 with 18 or 22 mm shaft, 1:8 taper or Bosch 1:5 taper; group 3 in several versions (25.4 mm shaft, SAE B, 1:8 taper). Each option carries its Borelli code (25400 and 25600 series) and its datasheet is in the attachments.

According to the Borelli catalogue, life is 3,500 hours at 1,500 rpm and lubrication is with DIN 51502 MPF-1K-20 grease.

Source: Oleodinamica Borelli Supporti technical catalogue.

1.0663.1

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (10)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
GR.1 (25601)
1.0663.1
Last units
GR.2 1:5 Bosch (25406)
1.0663.2BC
On request
GR.2 1:5 Bosch ⌀50 (25409)
1.0663.25409
Last units
GR.2 1:8 (25402)
1.0663.2C
Last units
GR.2 ⌀18 (25602)
1.0663.2
On request
GR.2 ⌀22 (25603)
1.0663.25603
On request
GR.3 1:8 (25404-6)
1.0663.3C
Last units
GR.3 (25604-6)
1.0663.3
Last units
GR.3 SAE-B (25608)
1.0663.25608
Last units
GR.3 ⌀25.4 (25607)
1.0663.25607
Last units
