Borelli IE13 electromagnetic clutch, group 3

Name: Borelli IE13 electromagnetic clutch, group 3
Brand: Oleodinamica Borelli
Availability: InStock

€540.52

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(439.45 € Excluding VAT. VAT at the legal rate applies.)

Borelli IE13 electromagnetic pulley clutch for group 3 pumps, 10 or 14 daNm, 12 or 24 V.

Model: GR.3 - 10 daNm - 12 V - 30909

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0662.IE1312

€439.45 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

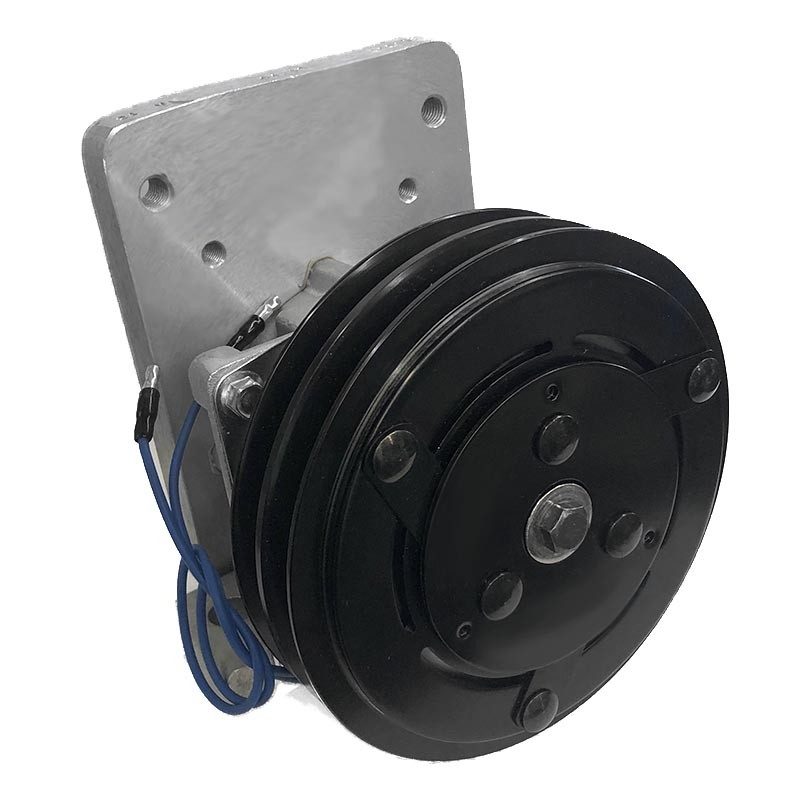

Oleodinamica Borelli electromagnetic pulley clutch (30900 series), with a flange for group 3 pumps. The two-groove pulley is belt driven; when the coil is energised the clutch engages and the pump turns, and without voltage the pump stands still. All Borelli electromagnetic clutches are reversible.

10 daNm version (30909 at 12 V, 30911 at 24 V): rated torque 7.8 daNm, static 12.5 daNm
14 daNm version (30931 at 12 V, 30932 at 24 V): rated torque 11.8 daNm, static 14 daNm
Maximum speed 5,000 rpm, weight 5.5 kg, DIN 5482 35x31 spline profile on the pump side
Power at 20 °C: 40 W at 12 V and 30.3 W at 24 V

To reach the rated torque, the clutch needs running in: several engagements and disengagements at high speed with the pump unloaded. The pulley surfaces must be free of oil and grease. Do not let it slip for more than 5 seconds, as the coil may burn out.

Source: Oleodinamica Borelli Innesti elettromagnetici technical catalogue, 2014; Borelli spare parts table for the 14 daNm electromagnetic clutch (30931, 30932).
