10602 splined sleeve Z14 25x22 DIN 5482

€63.86
Price including VAT at the legal rate

(51.92 € Excluding VAT. VAT at the legal rate applies.)

Borelli weld-on splined sleeve, with A 25x22 DIN 5482 internal spline, 14 teeth.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0661.10602

€51.92 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: Splined shafts on pumps and motors: SAE, DIN 5480 and DIN 5482

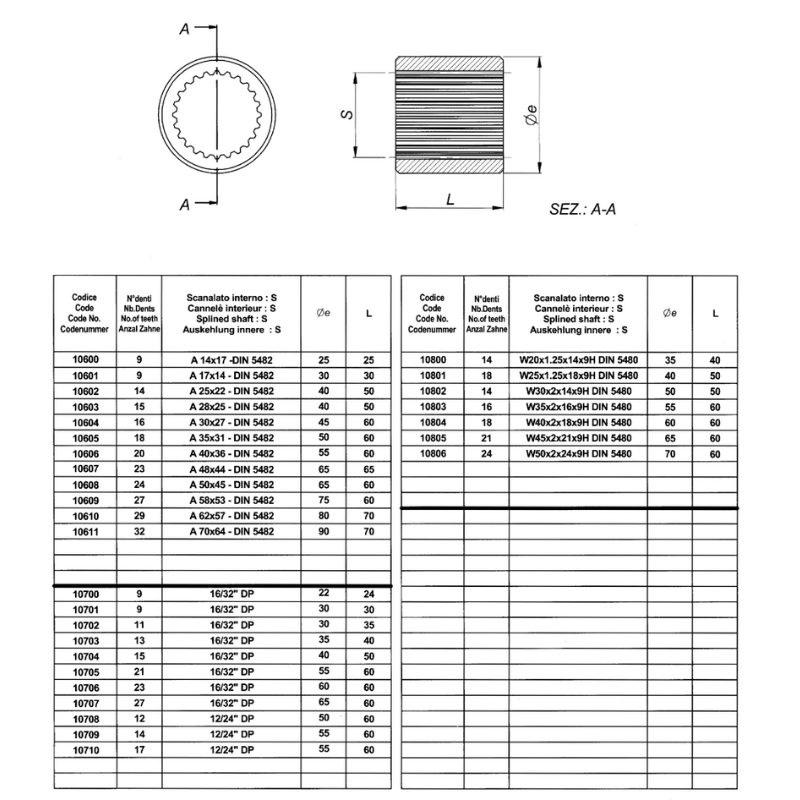

Oleodinamica Borelli 10600 series sleeve, with A 25x22 internal spline to DIN 5482, 14 teeth. It is plain on the outside, to be welded to another part to make a custom coupling.

  • Outside diameter: 40 mm
  • Length: 50 mm

According to the catalogue, Borelli splined parts are made of UNI 16CrNi4/Pb steel, heat treated.

Source: Oleodinamica Borelli Semigiunti scanalati technical catalogue.

1.0661.10602

Specific References

Internal barcode
2200111727355
