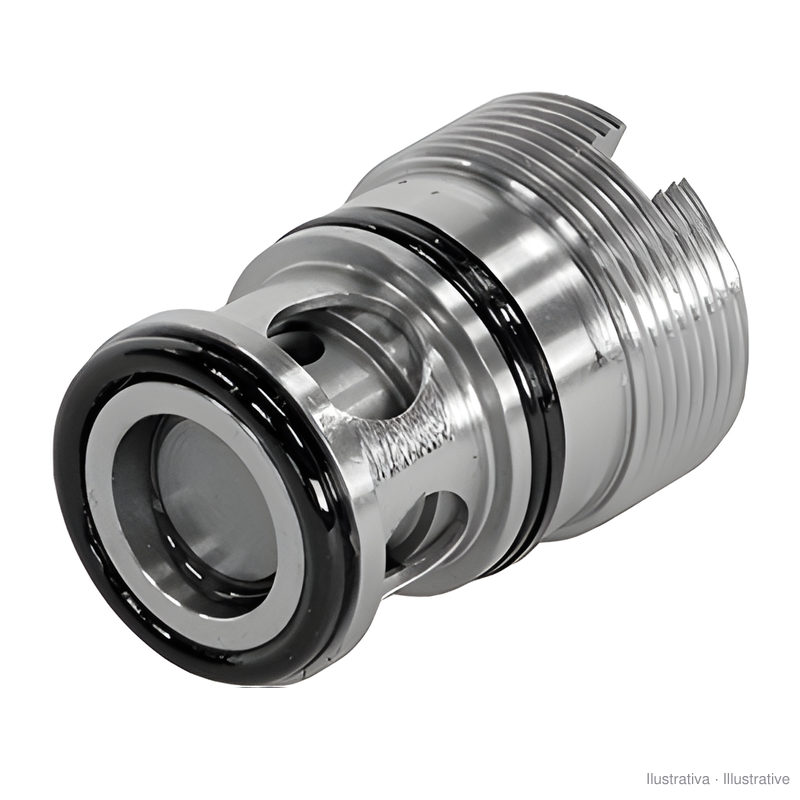

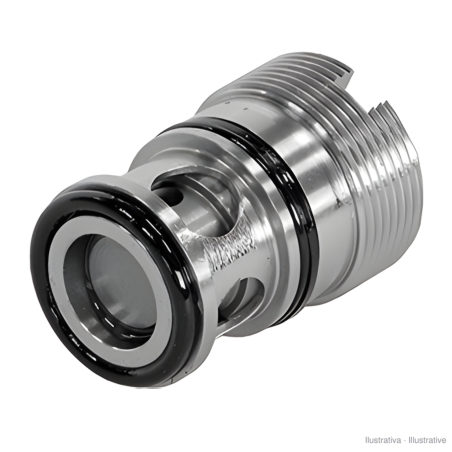

Duplomatic VR5-I3/32 cartridge check valve

* Price on request *

Price including VAT at the legal rate

Duplomatic VR5-I3/32 cartridge check valve, 3/4", for manifold or panel mounting, cracking at 5 bar.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.VR5I332

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VR5-I3/32 is a Duplomatic cartridge-type check valve, to be screwed into a cavity in a hydraulic manifold or panel. It lets oil through from A to B and closes in the opposite direction; the cone poppet is held closed by a spring and opens when the pressure at A exceeds the spring setting plus the pressure at B.

Nominal size: 3/4"; thread M30x1.5
Maximum flow: 150 l/min
Maximum pressure: 250 bar continuous and 320 bar peak
Cracking pressure: 5 bar (code I3); series 32
Tightening torque: 50 Nm; weight 0.2 kg
Sealing to the cavity: O-rings OR 3081 (20.24x2.62) and OR 2093 (23.52x1.78) and Parbak 8-021 ring

NBR seals for mineral oil. Check the manifold cavity against Duplomatic data sheet 45 100/110 ED before fitting.

Source: Duplomatic VR*-I technical catalogue, version 45 100/110 ED.
