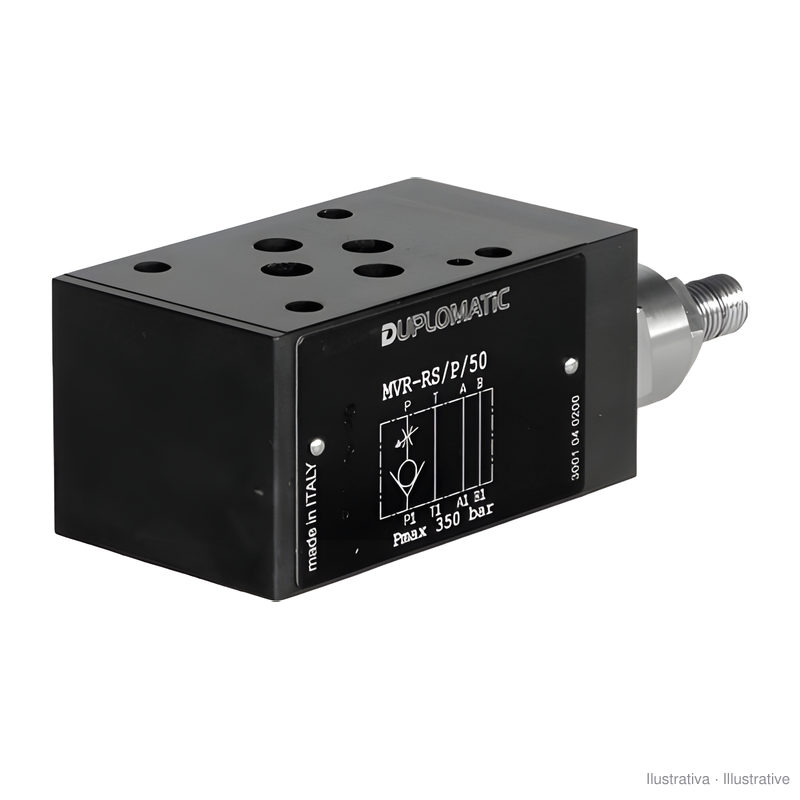

Duplomatic MVR-RS/P/50 NG6 (CETOP 3) modular check valve with restrictor on line P

* Price on request *

Price including VAT at the legal rate

Check valve with flow restrictor on line P, Duplomatic MVR-RS/P/50, modular NG6 (CETOP 3), up to 350 bar.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MVRRSP

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

NG6 (CETOP 3, ISO 4401-03) module combining, on line P, a check valve and an adjustable flow restrictor. It fits under the solenoid valve or other modules, without pipes. It limits the flow in one direction and, at the same time, prevents backflow and the line emptying in the opposite direction.

Maximum pressure: 350 bar
Check valve cracking pressure: 1 bar
Maximum flow: 50 l/min on the controlled line and 75 l/min on the free lines
Flow adjustment by hex socket screw with lock nut: turning anticlockwise increases the flow
Weight: 1.1 kg

Source: Duplomatic MVR-RS/P technical catalogue, version 65 210/116 ED.
