VOSS RHD check valve for DIN tube

€25.25
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(20.53 € Excluding VAT. VAT at the legal rate applies.)

VOSS RHD check valve for DIN tube, L and S series.

Check valve: 10L
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5922.10

€20.53 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

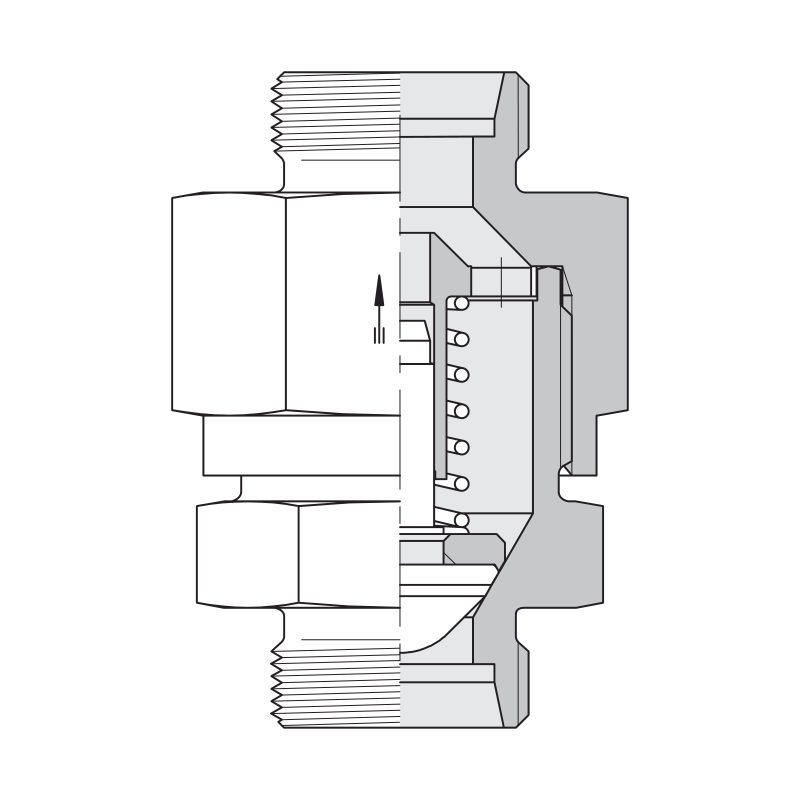

The RHD is a check valve fitted directly in the tube line: it lets oil through in one direction and closes in the opposite one. Both ends have a 24° tube connection (ISO 8434-1, formerly DIN 2353), so it takes the place of a straight union.

According to the attached data sheet, it opens at about 1 bar and uses NBR O-rings.

The size is the tube outside diameter in millimetres followed by the series:

  • L series (light): 6, 8, 10, 12, 15, 18, 22, 28, 35 and 42 mm
  • S series (heavy): 6, 8, 10, 12, 14, 16, 20, 25, 30 and 38 mm

L and S series use different nuts and cones and are not interchangeable. Check the tube diameter and the series before ordering, and check the flow direction before fitting.

Source: VOSS technical catalogue, Standard non-return valves.

1.5922.10

Data sheet

Port thread
Tube 6L
Tube 6S
Tube 8L
Tube 8S
Tube 10L
Tube 10S
Tube 12L
Tube 12S
Tube 14S
Tube 15L
Tube 16S
Tube 18L
Tube 20S
Tube 22L
Tube 25S
Tube 28L
Tube 30S
Tube 35L
Tube 38S
Tube 42L

Specific References

Internal barcode
2200001257900

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (20)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
6L
1.5922.6L
In stock
6S
1.5922.6S
On request
8L
1.5922.8
On request
8S
1.5922.8S
Last units
10L
1.5922.10
Last units
10S
1.5922.10S
In stock
12L
1.5922.12
In stock
12S
1.5922.12S
Last units
14S
1.5922.14
On request
15 L
1.5922.15
In stock
16 S
1.5922.16
Last units
18L
1.5922.18
Last units
20S
1.5922.20
In stock
22L
1.5922.22
Last units
25S
1.5922.25
Last units
28L
1.5922.28
Last units
30S
1.5922.30S
Last units
35L
1.5922.35
Last units
38S
1.5922.38
Last units
42L
1.5922.42L
On request
