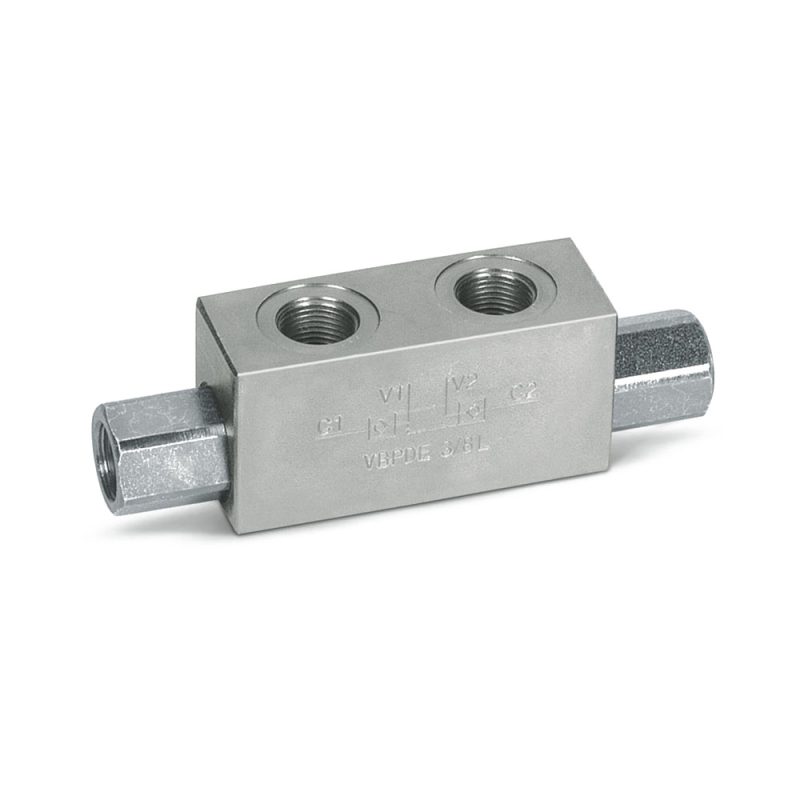

Marchesini VBPDE double pilot-operated check valve

Name: Marchesini VBPDE double pilot-operated check valve
Brand: Oleodinamica Marchesini
Availability: InStock

€40.67

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(33.07 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VBPDE double-acting pilot-operated check valve, 1/4" to 3/4".

Check valves: 1/4" L - V0010

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0010

€33.07 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBPDE holds a double-acting cylinder in both directions: oil enters freely on each side and only leaves when the opposite side receives pressure. Sealing is by a guided cone, with no leakage, so the load stays still without relying on the directional valve.

1/4" L (V0010): 20 l/min, 350 bar
3/8" L (V0020): 35 l/min, 350 bar
1/2" L (V0030): 50 l/min, 350 bar
1/2" (V0070): 70 l/min, 350 bar
3/4" (V0040): 100 l/min, 300 bar
3/8" L with two cartridges for 12L DIN 2353 tube (V0110): 30 l/min, 350 bar

Connect V1 and V2 to the directional valve and C1 and C2 to the cylinder. Zinc-plated steel body, hardened and ground steel internal parts, NBR seals. Check the port thread and, on the cartridge version, the tube diameter.

Source: Oleodinamica Marchesini technical catalogue, section Double pilot operated check valves; Oleodinamica Marchesini general catalogue 2018.
