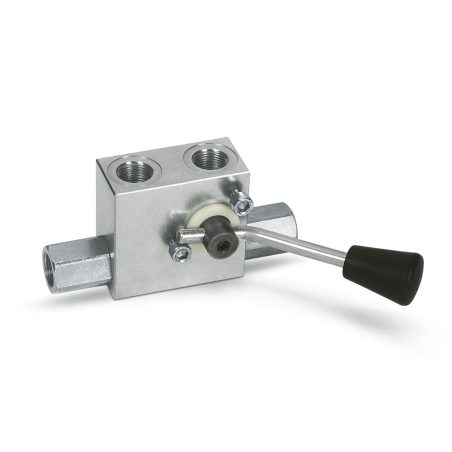

Marchesini VBPDE RUB double pilot check valve with shut-off

Name: Marchesini VBPDE RUB double pilot check valve with shut-off
Brand: Oleodinamica Marchesini
Availability: InStock

€58.07

Tax included Delivery in 1 to 5 working days.

(47.21 € No tax)

Marchesini VBPDE RUB double-acting pilot-operated check valve with manual shut-off tap, 1/4" and 3/8".

Check valves: 1/4" - V0072

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0072

€47.21 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBPDE RUB combines a double pilot-operated check valve with a lever-operated tap. The check valve holds the cylinder in both directions until pilot pressure arrives; with the tap closed, the cylinder stays locked even if someone operates the directional valve by mistake. That is why it is used on stabiliser cylinders: the stabilisers are set down and the tap is closed.

1/4" L (V0072): G 1/4" threads, up to 20 l/min
3/8" L (V0074): G 3/8" threads, up to 30 l/min

Maximum pressure 350 bar. Zinc-plated steel body, guided-cone sealing with no leakage, NBR seals. The lever is reversible; it comes on the left side as standard and on the right side on request. Connect V1 and V2 to the supply and C1 and C2 to the cylinder.

Source: Oleodinamica Marchesini technical catalogue, section Double pilot operated check valves; Oleodinamica Marchesini general catalogue 2018.
