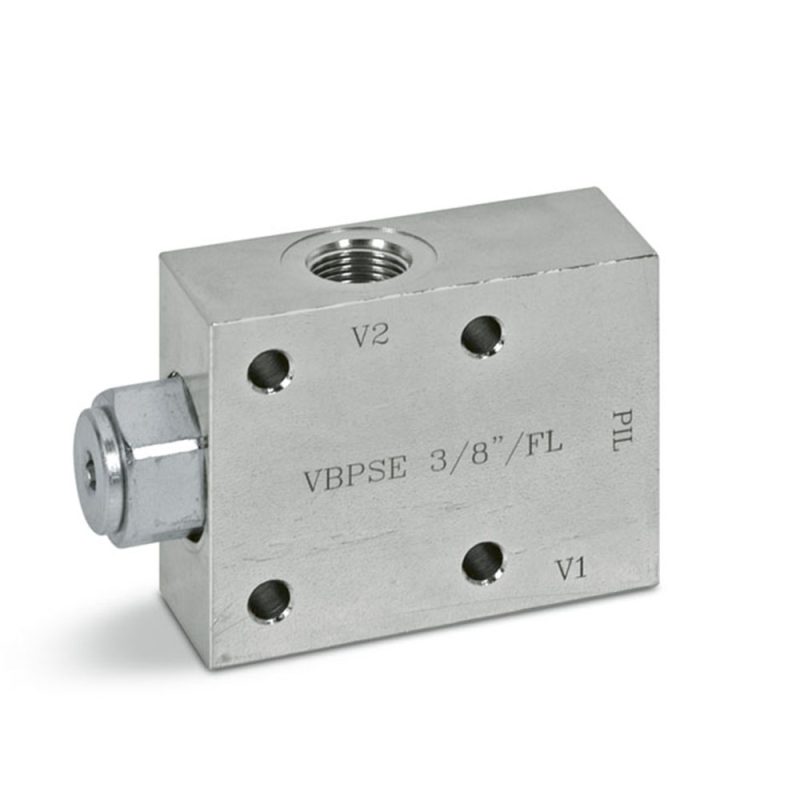

Marchesini VBPSE FL single pilot-operated check valve

Name: Marchesini VBPSE FL single pilot-operated check valve
Brand: Oleodinamica Marchesini
Availability: InStock

€57.19

Tax included Delivery in 1 to 5 working days.

(46.49 € No tax)

Marchesini VBPSE FL single-acting pilot-operated check valve, flanged.

Check valves: 3/8" - V0269

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0269

€46.49 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBPSE FL is the flange-mounted version of the single pilot-operated check valve: port C2 is on a face with an O-ring seat and bolts directly onto the side of the cylinder that must be held. C1 goes to the free-flow side and V1 and V2 to the directional valve. Sealing is by a guided cone, with no leakage.

1/4" (V0268): G 1/4", up to 20 l/min, O-ring 1.78x12.42
3/8" (V0269): G 3/8", up to 30 l/min, O-ring 1.78x12.42
1/2" (V0270): G 1/2", up to 55 l/min, O-ring 2.62x15.54

Maximum pressure 350 bar. Zinc-plated steel body, hardened and ground steel internal parts, NBR seals. Check the hole pattern and seat on the cylinder face before ordering.

Source: Oleodinamica Marchesini technical catalogue, section Single pilot operated check valves; Oleodinamica Marchesini general catalogue 2018.
