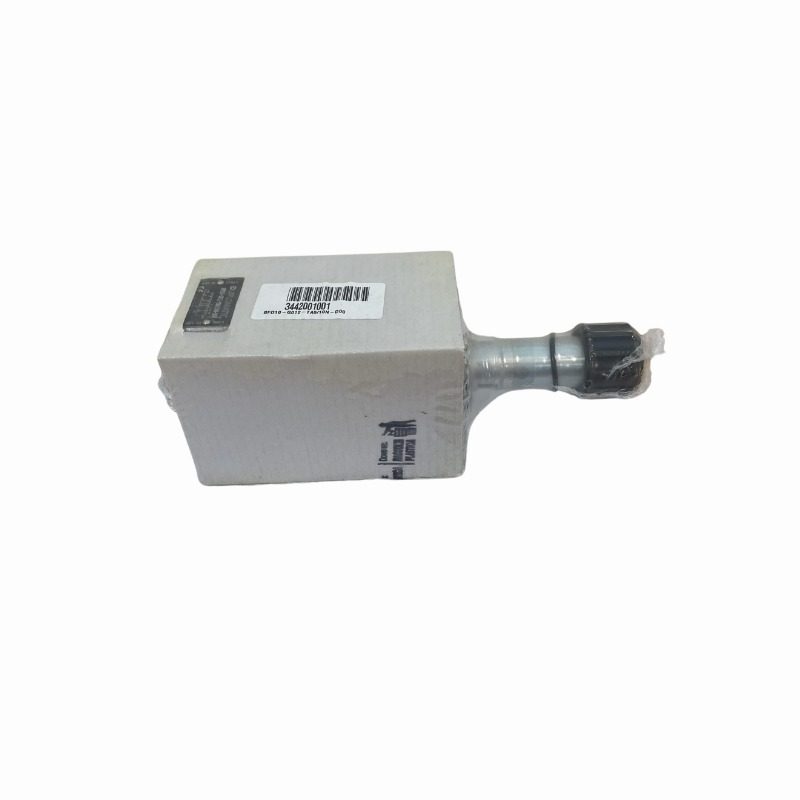

Duplomatic BFD10-G012-TA6/10-D00 6-way flow diverter, 1/2", without coils
search
  • Duplomatic BFD10-G012-TA6/10-D00 6-way flow diverter, 1/2", without coils

Duplomatic BFD10-G012-TA6/10-D00 6-way flow diverter, 1/2", without coils

€240.98
Price including VAT at the legal rate

(195.92 € Excluding VAT. VAT at the legal rate applies.)

Duplomatic BFD10 6-way solenoid operated flow diverter, 1/2" BSP ports, up to 90 l/min and 320 bar. Supplied without coils.

Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.BFD10G12TA6D00

€195.92 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Duplomatic 6-way flow diverter in the larger size of the series (BFD10). A solenoid valve switches the flow between two users, so that, for example, two actuators can be served by a single directional valve section. It can be assembled in series, up to 5 modules, with its own fixing kit.

  • Maximum flow: 90 l/min; maximum pressure: 320 bar
  • Ports: G1/2 (1/2" BSP)
  • TA6 spool, 1 solenoid, series 10
  • D00: supplied without coils, which are ordered separately (12 or 24 V DC)
  • Zinc-nickel finish; weight 4.2 kg with coils

For flows up to 60 l/min there is the smaller BFD06.

Source: Duplomatic BFD* technical catalogue, version 44 200/115 ED.

D.BFD10G12TA6D00

Data sheet

Port thread
G 1/2

Specific References

MPN
BFD10-G012-TA6/10-D00
