Duplomatic QTM5-RD/10 double modular flow restrictor, NG10 (CETOP 5), meter-in

Name: Duplomatic QTM5-RD/10 double modular flow restrictor, NG10 (CETOP 5), meter-in
Brand: Duplomatic
Availability: InStock

€385.68

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(313.56 € Excluding VAT. VAT at the legal rate applies.)

NG10 (CETOP 5) double modular restrictor that controls the flow entering the actuator, on lines A and B. Up to 120 l/min.

Duplomatic DS5: QTM5-RD/10

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.QTM5RD

€313.56 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

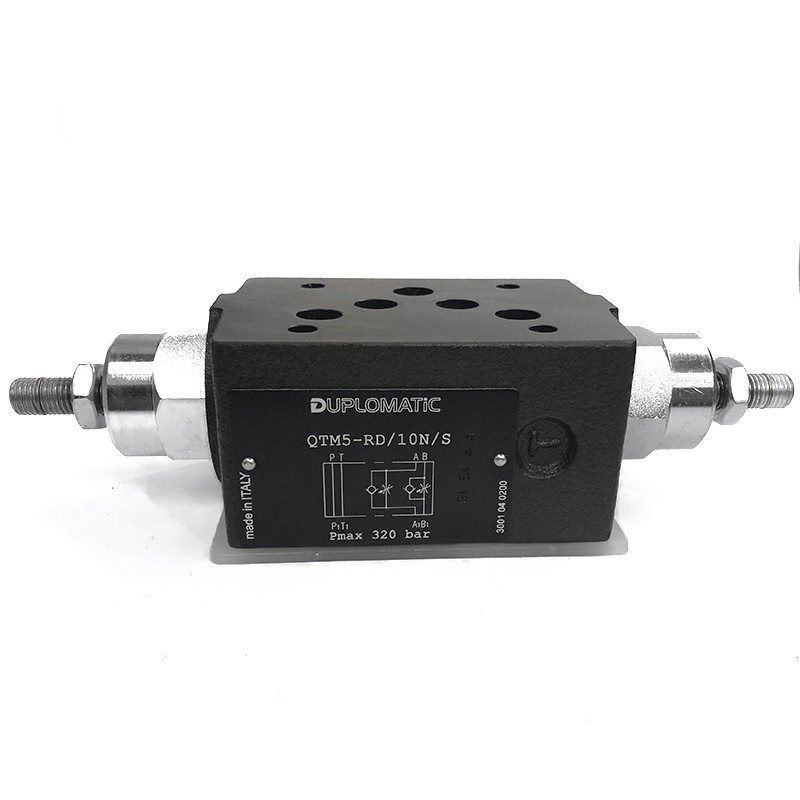

Meter-in version of the Duplomatic QTM5 modular restrictor: it controls the flow entering each chamber of the actuator, with one screw for line A and another for line B. Returning oil flows freely through the built-in check valve, which opens at 0.5 bar.

It fits under the NG10 (CETOP 5) solenoid valve, in the ISO 4401-05 modular stack, held by the stack tie rods. Meter-in works well when the load always acts against the actuator; if the load pulls the cylinder, choose the meter-out version, QTM5-D.

Maximum flow: 120 l/min
Maximum pressure: 350 bar, according to datasheet 64 310
Countersunk hexagon screw with locknut; turning anticlockwise increases the flow

Source: Duplomatic QTM5 technical catalogue, version 64 310/110 ED.
