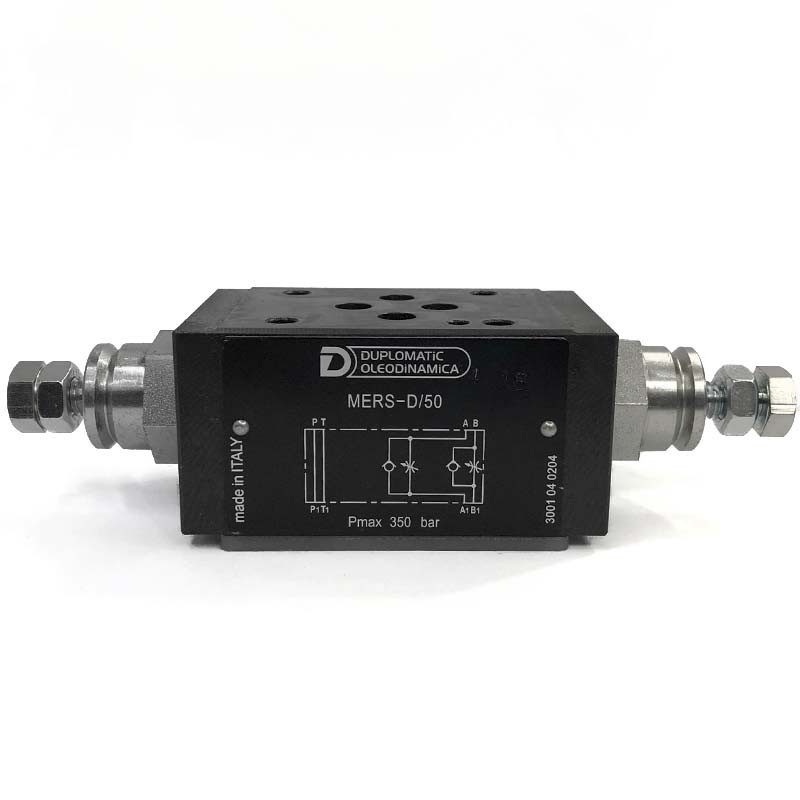

Duplomatic MERS-D double modular flow restrictor, NG6 (CETOP 3), meter-out

* Price on request *

Tax included

NG6 (CETOP 3) double modular restrictor that independently controls, on A and B, the flow leaving the actuator. Up to 350 bar and 50 l/min.

Duplomatic NG6 (CETOP 3): MERS-D/50

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MERSD

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The MERS-D is a non-compensated double flow restrictor in ISO 4401-03 modular form. It fits in the stack, under the NG6 (CETOP 3) solenoid valve, and is used to set the speed of a cylinder or motor in both directions.

In the D version the control is on the flow leaving the actuator (meter-out), with one screw for line A and another for line B. In the opposite direction the oil passes through a check valve that opens at 0.5 bar. Metering out keeps the actuator held by the return oil, which helps with loads that tend to run away.

Maximum pressure: 350 bar
Maximum flow: 50 l/min in the controlled lines, 75 l/min in the free lines
Hexagon screw adjustment, series 50

Source: Duplomatic MERS technical catalogue, version 64 200/112 ED.
