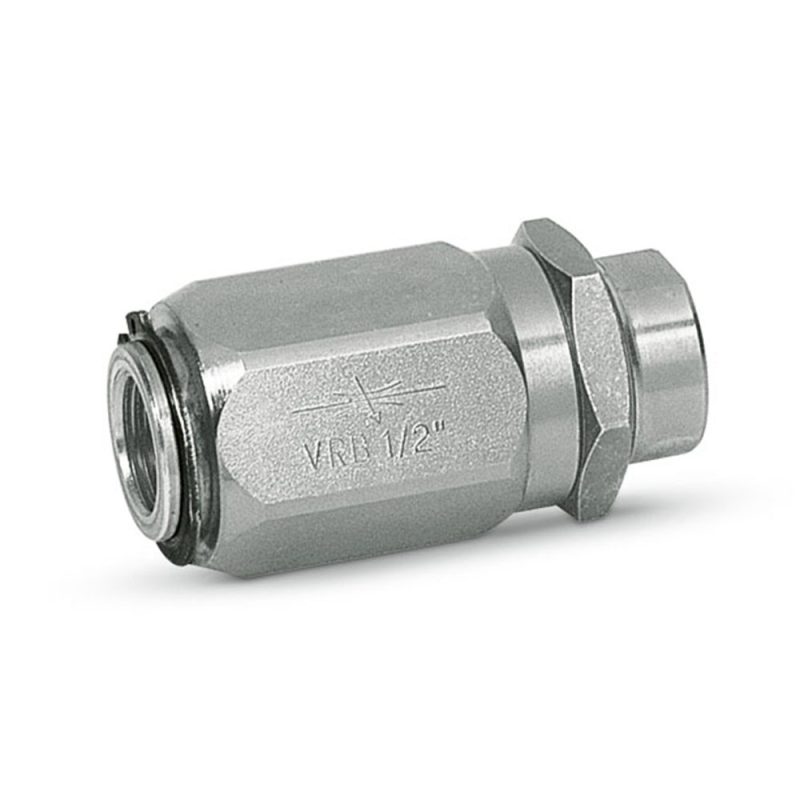

Marchesini VRB bidirectional flow restrictor

Name: Marchesini VRB bidirectional flow restrictor
Brand: Oleodinamica Marchesini
Availability: InStock

€32.40

Tax included Delivery in 1 to 5 working days.

(26.34 € No tax)

In-line barrel-type flow restrictor that controls the flow in both directions. From 1/4" to 1" BSP, up to 300 bar.

Restrictors: 1/4" - V0545

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA06.V0545

€26.34 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VRB is a non-compensated in-line flow restrictor that throttles the oil the same way in both directions. It is used to slow down a cylinder or motor when the setting does not need to differ between the two strokes. It is adjusted by turning the outer sleeve; once set, the locking ring is tightened so that vibration does not change the setting.

1/4" (V0545): 20 l/min, 300 bar
3/8" (V0555): 45 l/min, 300 bar
1/2" (V0565): 70 l/min, 300 bar
3/4" (V0575): 110 l/min, 250 bar
1" (V0585): 160 l/min, 250 bar

As it is not compensated, the speed changes with pressure and oil viscosity. Zinc-plated steel body and NBR seals.

Source: Oleodinamica Marchesini general catalogue 2018; Oleodinamica Marchesini technical catalogue, section Flow regulator valves.
