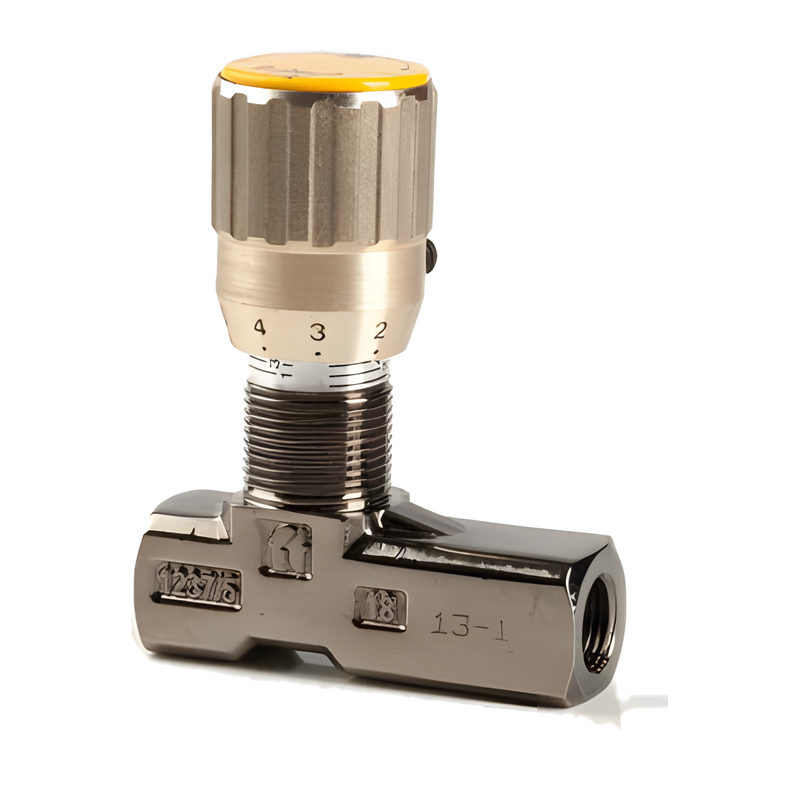

Tognella FT 1237/5 fine one-way restrictor - 1/8"

Name: Tognella FT 1237/5 fine one-way restrictor - 1/8"
Brand: Tognella
Availability: InStock

€87.65

Tax included Delivery in 1 to 5 working days.

(71.26 € No tax)

Tognella FT 1237/5 fine-adjustment one-way restrictor, 1/8", for small flows up to 3 l/min. Up to 210 bar.

FT 1237/5: 1/8"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2112.18

€71.26 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Micro-fine, one-way control valve for in-line mounting. It is made to set very small flow rates, up to about 3 l/min, in hydraulic or pneumatic circuits; it can also be used with other fluids, such as gases and liquids in general. In the opposite direction the fluid flows freely through a ball check.

Thread: 1/8" G
Maximum pressure: 210 bar
Temperature: -20 to +100 °C
Recommended filtration: 25 µm
Black chrome-plated brass body, stainless steel needle, nitrile seals with PTFE back-up ring

The needle has metal-to-metal sealing, cannot be withdrawn by accident, and the valve can be panel-mounted with a ring nut. NPT threads or Viton seals are available on request.

Source: Tognella, FT 1237/5 technical catalogue.
