Argo-Hytos SU6A-U3 / U4 unloading valve and bodies

Name: Argo-Hytos SU6A-U3 / U4 unloading valve and bodies
Brand: Argo Hytos
Availability: InStock

€152.87

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(124.29 € Excluding VAT. VAT at the legal rate applies.)

Argo-Hytos SU6A cartridge unloading valves for U3 and U4 cavities, and SB-U3 and SB-U4 in-line bodies with G1/2 ports.

Unloading valve: SB-U3-0105AL (body)

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.24296700

€124.29 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

This item groups the Argo-Hytos SU6A cartridge unloading valves and the in-line bodies they screw into.

SU6A-U3/I10-A-75/4.8 and SU6A-U3/I20-A-100/4.8: for cavity U3 (1-1/8"-12 UNF, 3-way)
SU6A-U4/I10-A-75/4.8 and SU6A-U4/I20-A-100/4.8: for cavity U4 (1-1/8"-12 UNF, 4-way)

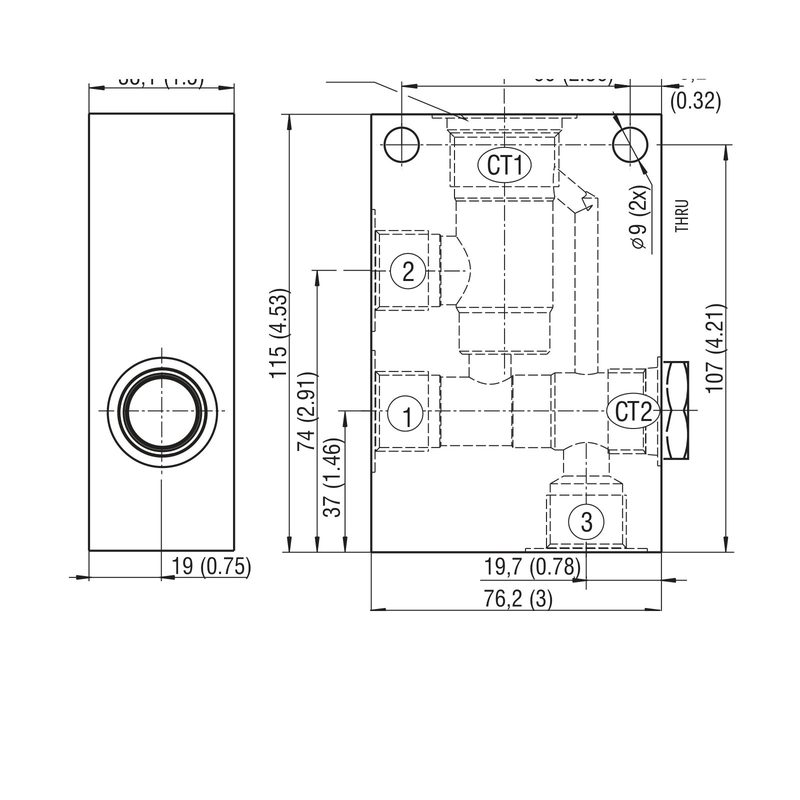

SB-U3-0105AL: aluminium body for U3, G1/2 ports, up to 250 bar
SB-U3-0105ST-A: steel body for U3, G1/2 ports, up to 420 bar
SB-U4-0105ST-A: steel body for U4, G1/2 ports, up to 420 bar

The assembly is limited by the pressure of its weakest part: with the aluminium body, do not go above 250 bar. Check whether the machine cavity is U3 or U4 before ordering.

Source: Argo-Hytos SB datasheet, HA 0018, 07/2024.
