Eurofluid reduction plate NG16 to NG10 and NG10 to NG6

Name: Eurofluid reduction plate NG16 to NG10 and NG10 to NG6
Brand: Eurofluid
Availability: InStock

€72.83

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(59.21 € Excluding VAT. VAT at the legal rate applies.)

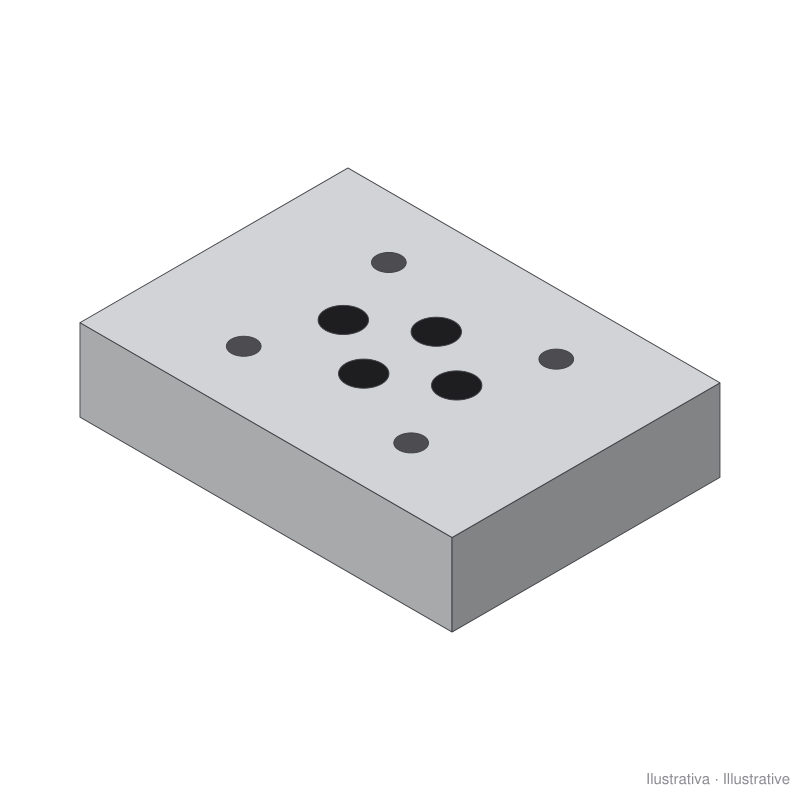

Eurofluid reduction plates for mounting a smaller valve on a larger subplate: NG16 to NG10 (EB407) and NG10 to NG6 (EB415).

Reducing base: NG10 (CETOP 5) to NG6 (CETOP 3)

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.6292.EB415

€59.21 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The reduction plate fits on a subplate or block and lets you mount a valve one size smaller there, without changing the subplate. Choose in the options:

EB407: from NG16 (CETOP 7) to NG10 (CETOP 5); X and Y closed; 46 mm high; 3.5 kg; sealing with OR 3100 and OR 108 O-rings
EB415: from NG10 (CETOP 5) to NG6 (CETOP 3); straight connections (P to P, T to T, A to A, B to B); 70 x 90 mm, 28.5 mm high; 1.3 kg; 5 OR 2050 O-rings

The EB4 series also has the EB405, which crosses A and B; if the machine already had a reduction plate, check the stamped code before choosing.

Source: Eurofluid Hydraulic general catalogue.
