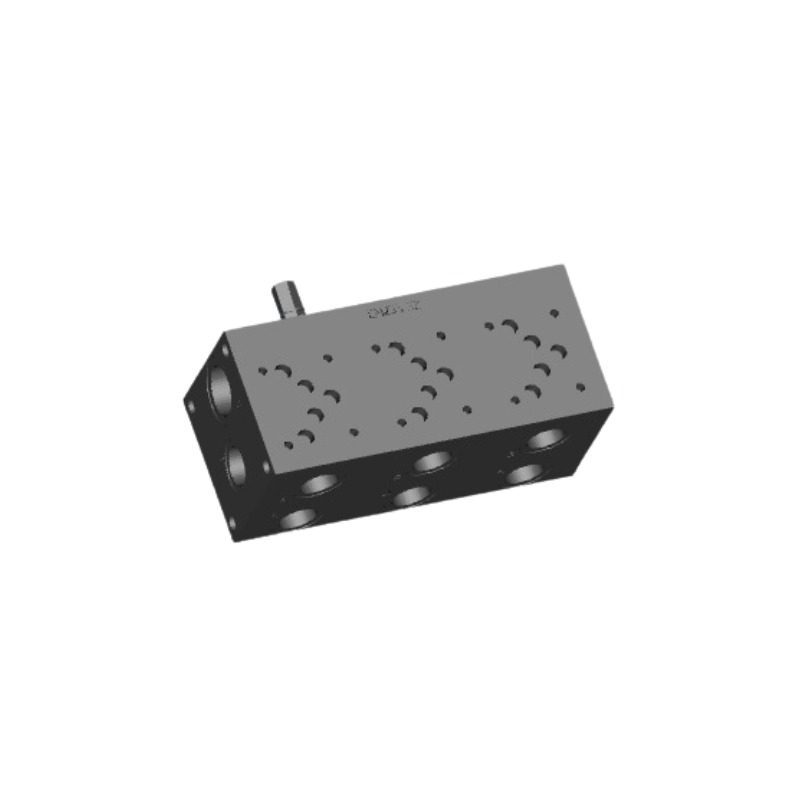

Eurofluid EM235/5X2F NG10 block, 5 stations, with relief valve 10-210 bar
search
  • Eurofluid EM235/5X2F NG10 block, 5 stations, with relief valve 10-210 bar

Eurofluid EM235/5X2F NG10 block, 5 stations, with relief valve 10-210 bar

€629.43
Price including VAT at the legal rate

(511.73 € Excluding VAT. VAT at the legal rate applies.)

Eurofluid five-station NG10 (CETOP 5) parallel manifold, with a 10 to 210 bar relief valve.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.6292.EM235/5X2F

€511.73 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Manifold for mounting five NG10 (CETOP 5) directional solenoid valves connected in parallel. It has a double return, with T on both sides, and already includes the VSP 150 relief valve, with a 10 to 210 bar spring and key adjustment.

Ports are on the side: A and B in 3/4" G at each station, P in 3/4" G and T in 1" G. On top, each station has the CETOP 5 pattern with four M10 threads to fix the valve.

  • Stations: 5
  • Length: 400 mm
  • Weight: 31.5 kg

The attached datasheet has the full dimensions and the hydraulic diagram.

Source: Eurofluid Hydraulic general catalogue.

1.6292.EM235/5X2F

Data sheet

CETOP interface
NG10 (CETOP 5)

Specific References

Internal barcode
2200111744239
MPN
EM235/5X2F
