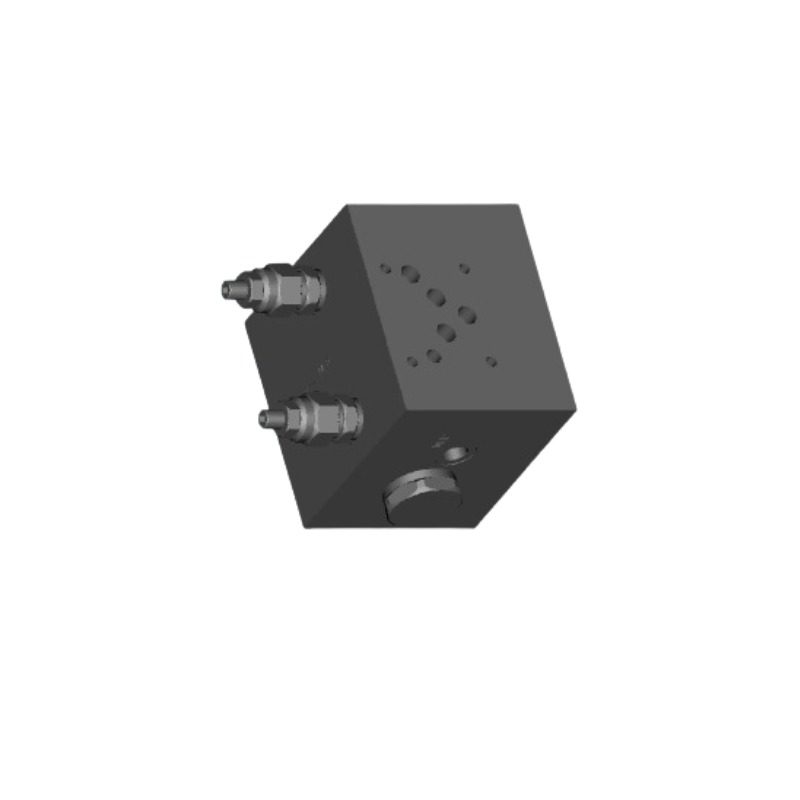

Eurofluid ET215/3F1F NG10 high-low pressure base, HP 3/8", LP and T 3/4" rear
€648.55
Price including VAT at the legal rate
(527.28 € Excluding VAT. VAT at the legal rate applies.)
Eurofluid ET215/3F1F base for circuits with a high and low pressure double pump, with a face for one NG10 (CETOP 5) valve. Up to 120 l/min and 350 bar.
The ET215/3F1F handles a double pump in a single part: while pressure is low, both pumps feed the circuit; once pressure goes above the low-pressure setting, the large pump unloads to tank and only the small one keeps building pressure. An NG10 (CETOP 5) directional solenoid valve is mounted on top.
- Nominal flow: 120 l/min; maximum pressure: 350 bar
- High pressure (HP): 3/8" G inlet at the rear, VS-30 relief valve with key adjustment, 100 to 350 bar (3F)
- Low pressure (LP): 3/4" G inlet at the rear, key adjustment from 30 to 100 bar (1F)
- T 3/4" G at the rear; A and B 3/4" G on the side
- GG25 cast iron body, polyurethane and NBR seals, 10 kg
It is prepared for electric venting of the LP line, with the seat closed by an ETVEI plug. The attached datasheet has the dimensions and the hydraulic diagram.
Source: Eurofluid ET215 data sheet, REV. 01.
1.6292.10APBP215
Data sheet
- CETOP interface
- NG10 (CETOP 5)
Specific References
- Internal barcode
- 2200111649664
- MPN
- ET215/3F1F
