Badestnost Z50A1ESD solenoid directional valve
search
  • Badestnost Z50A1ESD solenoid directional valve

Badestnost Z50A1ESD solenoid directional valve

€443.55
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(360.61 € Excluding VAT. VAT at the legal rate applies.)

Badestnost Z50A1ESD monoblock directional valve, with two coils per spool and spring return to neutral, 1 to 6 sections, at 12 or 24 V DC.

Type: 1x 12VDC
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2347.Z501ESD12V

€360.61 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

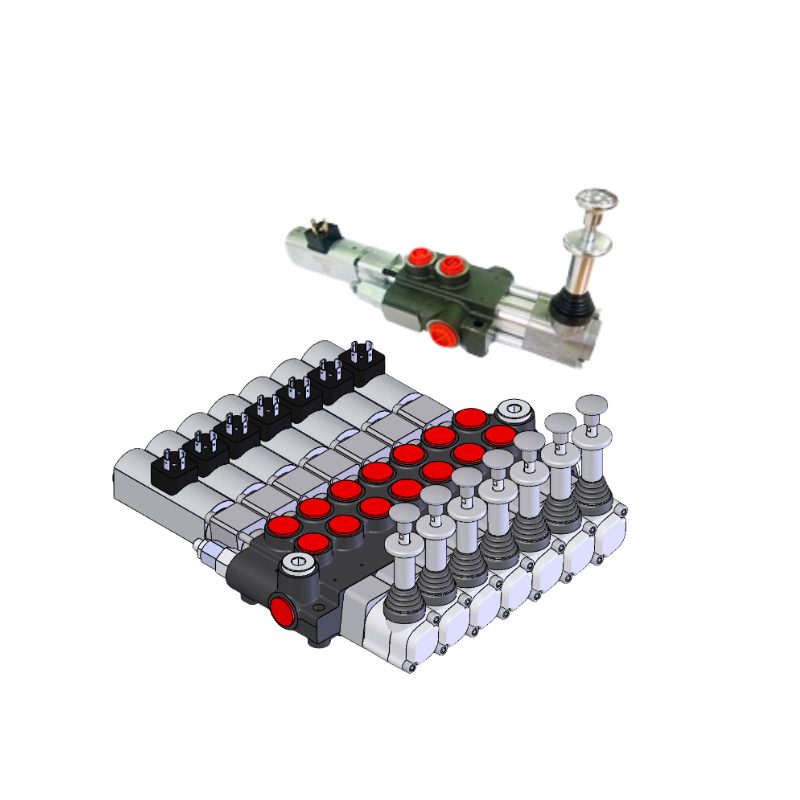

The Z50A1ESD is the latest version of the Badestnost Z50 solenoid directional valves. Each spool is operated by two coils and returns to centre by a spring; it has an emergency manual override and can take a lever (K1 kit) or an end cap.

  • Flow: 50 l/min; maximum pressure: 250 bar
  • Main relief valve and load check valve fitted
  • In neutral, A and B are blocked and the pump unloads to tank
  • 12 or 24 V DC coils, 53 W, class H, continuous duty (100%), ISO 4400 connector
  • Threads: A and B G3/8; P, T and N G1/2

The body is interchangeable with the Z50ES, changing only the spool seals. Choose the number of sections and the voltage in the options.

Source: Badestnost Z50A1ESD data sheet, March 2014; Badestnost Z50 data sheet, March 2018.

1.2347.Z501ESD12V

Data sheet

Pressure
250 bar
Flow
50 L/min

Specific References

Internal barcode
2200111745397
