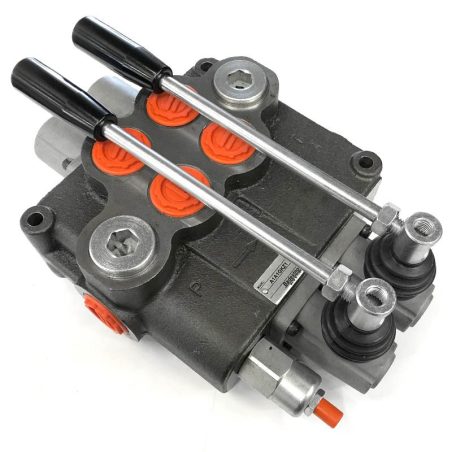

Badestnost P120 manual directional valve

Name: Badestnost P120 manual directional valve
Brand: Badestnost
Availability: InStock

€332.87

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(270.62 € Excluding VAT. VAT at the legal rate applies.)

Badestnost P120 manual monoblock directional valve, 1 to 4 levers, for 120 l/min and 250 bar.

P120 directional valve: 1 lever

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2343.A1

€270.62 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Badestnost P120 hydraulic monoblock directional valve, lever operated, fixed by three M10 bolts. It is the model for circuits with higher flows, up to 120 l/min, on tractors and construction and forestry machines.

Nominal flow: 120 l/min
Maximum pressure: 250 bar at P, 300 bar at A and B, 50 bar at return T
Internal leakage: 30 cm³/min at 120 bar
Spool stroke: ± 10 mm

Choose the number of levers in the options, from 1 to 4, all with A1 spools: double-acting, with A and B closed in the centre and spring return to neutral. Dimensions and threads are in the attached data sheet.

Source: Badestnost P120 data sheet; Badestnost Z50 (P40) data sheet, August 2015.
