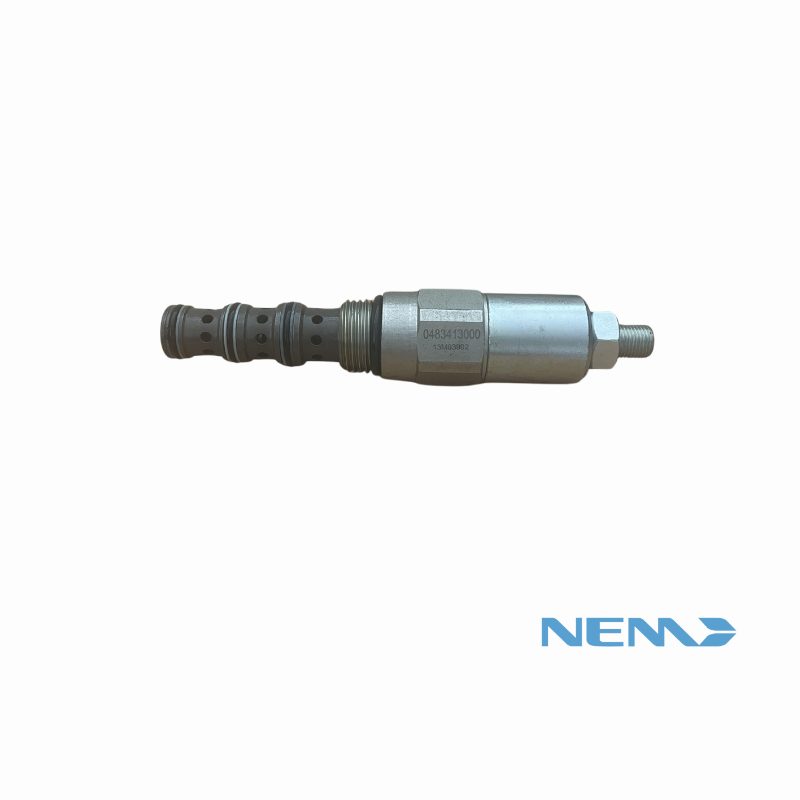

NEM hydraulically piloted 3/2 directional valve, cartridge CAV10-4
€118.46
Tax included
Delivery in 1 to 5 working days.
(96.31 € No tax)
NEM hydraulically piloted 3/2 directional valve (no coil), SAE 10 cartridge for cavity 10-4, with 10-60 bar spring.
NEM 3-way, 2-position directional valve, operated by hydraulic pressure and not by a coil: it changes position when the pilot pressure reaches the value set on the spring. It is used in blocks to divert flow or switch a function automatically, according to the pressure at another point of the circuit.
- NEM code 0483413000 (CT-4834 series)
- Spring 10 to 60 bar (factory set 20 bar)
- Flow up to 50 l/min, maximum pressure 350 bar
- SAE 10 cartridge, cavity 10-4 (C430000 in the NEM catalogue)
- NBR and PTFE seals; cartridge tightening torque 50 Nm
Before ordering, check the block cavity and the required switching pressure.
Source: NEM Mechanical and Electrical Cartridge Valves technical catalogue, DT001GB001 IR00, 14.11.
1.1339.0483413000
Data sheet
- Cavity
- CAV 10-4
