VOSS WV shuttle valve

Name: VOSS WV shuttle valve
Brand: VOSS
Availability: InStock

* Price on request *

Tax included

VOSS WV "OR" shuttle valve for tube, with 24° connections, L and S series, from 6 to 12 mm.

Shuttle valve: 10S

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5932.10S

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

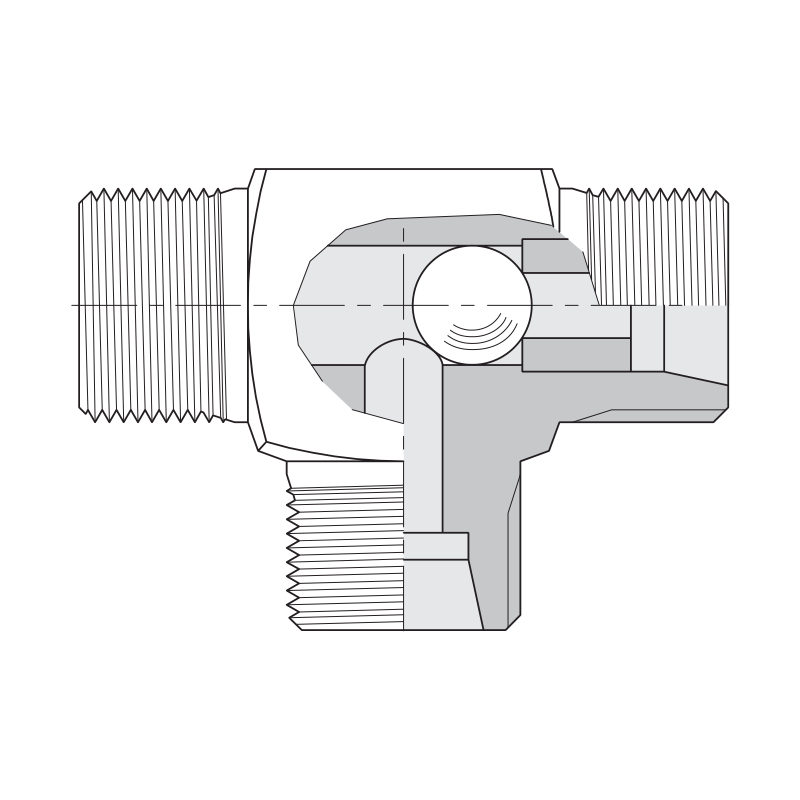

The WV is an automatic ball-type shuttle valve: it has two inlets (A and B) and one outlet (C). The ball closes the lower-pressure inlet and outlet C stays connected to the line with the higher pressure. It needs no maintenance and can be fitted in any position.

24° tube connections to ISO 8434-1 (formerly DIN 2353)
Options: 8L (8 mm tube, light series) and 6S, 8S, 10S and 12S (heavy series)
Nominal pressure: 250 bar for the L series and 630 bar for S sizes from 6 to 12 mm
Steel body with VOSS coat protection; for mineral oil, from -40 °C to 120 °C

Not suitable for compressed air or gases. Check the tube outside diameter and the series (L or S) before ordering.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.
