NEM proportional pressure reducing valve

Name: NEM proportional pressure reducing valve
Brand: NEM Hydraulics
Availability: InStock

€187.26

Tax included Delivery in 1 to 5 working days.

(152.25 € No tax)

NEM electro-proportional pressure reducing valves: 0-20 and 0-30 bar cartridges and 3-28 bar flange-mounted valves, 12 or 24 V DC.

Valve: Electro-proportional valve 0-20 bar CAV 8-3 [0172200000]

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.1339.0172200000

€152.25 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Pressure reducing valves with proportional electric control: the reduced pressure rises with the current in the coil. They are used to pilot directional valves, hydraulic brakes and clutches from an electronic controller.

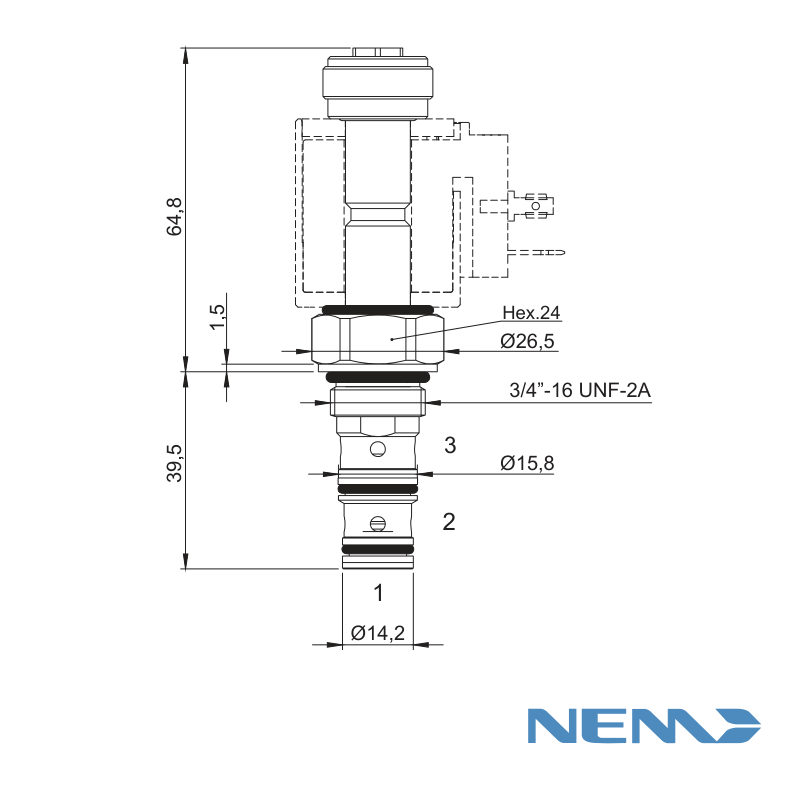

0172200000 and 0172210000: 3/4"-16 UNF screw-in cartridge, cavity 8-3, range 0 to 20 bar or 0 to 30 bar, about 4 l/min, up to 210 bar at the inlet. The CT-9400 coil is ordered separately.
1027001020 (12 V DC) and 1027002020 (24 V DC): flange-mounted proportional reducing valve, range 3 to 28 bar, up to 50 bar at the inlet and 2 l/min, with DIN 43650 connector.
1027911110 (DX) and 1027911140 (SX): IT027 versions, 12 V DC, with spring.

Maximum current differs between 12 and 24 V; check the voltage and mounting type of the valve being replaced.

Source: NEM Hydraulics technical catalogue, edition 09.7.
