Marchesini VRP pressure reducing valve

€153.55
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(124.84 € Excluding VAT. VAT at the legal rate applies.)

Direct-acting in-line pressure reducing valve, 3/8" and 1/2" BSP. Up to 30 l/min and 350 bar, with settings up to 60 or up to 180 bar.

Pressure reducing valves: 3/8" - V0704/055
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA03.V0704/055

€124.84 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VRP keeps the downstream pressure constant, whatever the upstream pressure. It is used to feed one branch of the circuit, such as a clamping cylinder or a pilot line, at a lower pressure than the pump.

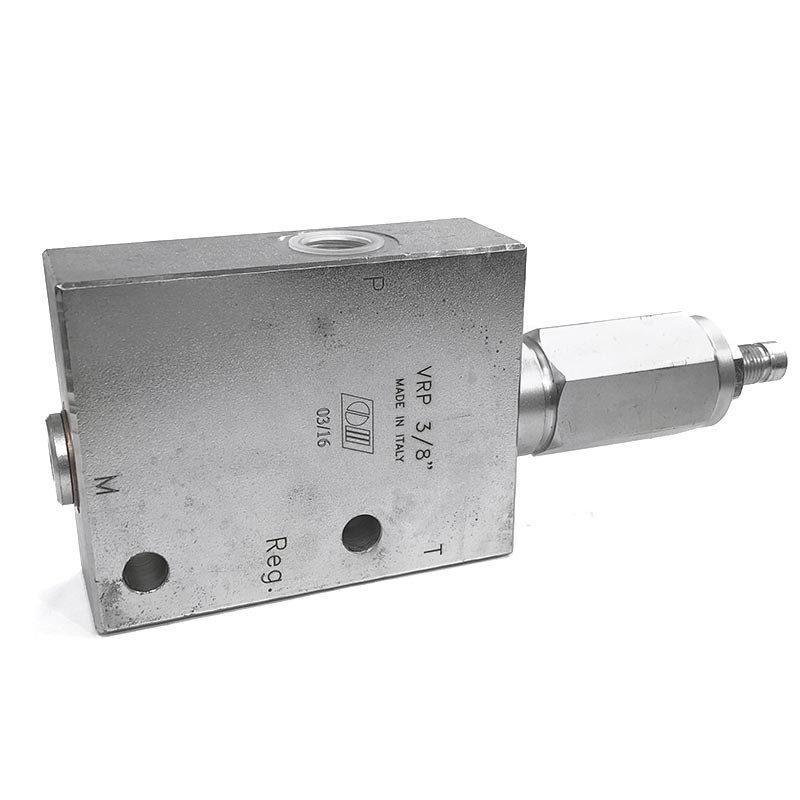

P connects to the main circuit, Reg to the branch that needs the reduced pressure and T to tank. There is also an M port for a pressure gauge.

  • Threads: G 3/8 (V0704) and G 1/2 (V0706)
  • Maximum flow: 30 l/min
  • Maximum pressure: 350 bar
  • Setting ranges in the catalogue: /060 10 to 60 bar, /180 35 to 180 bar
  • Leakage: 70 cm³/min at 350 bar in P

Zinc-plated steel body, with hardened and ground internals and NBR seals. Codes ending in /V come with a handwheel.

Source: Oleodinamica Marchesini general catalogue 2018.

1.MA03.V0704/055

Data sheet

Port thread
G 1/2
G 3/8

Specific References

Internal barcode
2200111606018

1 other product in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (11)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
3/8" - V0704/055
1.MA03.V0704/055
In stock
3/8" - V0704/055/V
1.MA03.V0704/055V
Last units
3/8" - V0704/165
1.MA03.V0704/165
In stock
3/8" - V0704/165/V
1.MA03.V0704/165V
On request
1/2" - V0706/055
1.MA03.V0706/055
On request
1/2" - V0706/055/V
1.MA03.V0706/055V
Last units
1/2" - V0706/060
1.MA03.V0706/060
Last units
1/2" - V0706/165
1.MA03.V0706/165
On request
1/2" - V0706/165/V
1.MA03.V0706/165V
On request
1/2" - V0706/180
1.MA03.V0706/180
Last units
1/2" - V0706/180/V
1.MA03.V0706/180V
Last units
