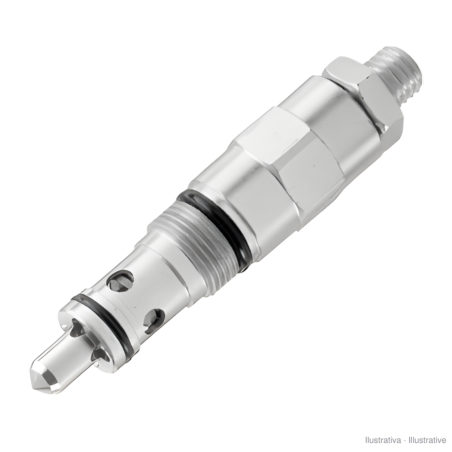

Duplomatic cartridge (CR, CRQ, DBV) and panel (RM3-W) pressure relief valve

Name: Duplomatic cartridge (CR, CRQ, DBV) and panel (RM3-W) pressure relief valve
Brand: Duplomatic
Availability: InStock

€115.27

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(93.72 € Excluding VAT. VAT at the legal rate applies.)

Duplomatic pressure relief valves: direct-acting CR and DBV cartridges, pilot-operated CRQ and pilot-operated RM3-W panel valve, up to 350 bar.

Relief valve: 80 bar M30x1.5 Bosch

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DBV080

€93.72 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

This item groups several Duplomatic relief valves for manifold or panel mounting:

CR6/22N: direct-acting cartridge for Duplomatic D-10B seat, up to 50 l/min; spring 6, up to 350 bar; NBR seals
CRQ5 and CRQ6: pilot-operated cartridge for D-10C seat, up to 100 l/min, passes the full pump flow close to the set pressure; range 5 up to 210 bar and 6 up to 350 bar
DBV 080 and 300: direct-acting cartridge for D-10E seat with M30x1.5 thread, up to 120 l/min and 380 bar; ranges up to 80 bar and up to 300 bar
RM3-W5/30 and RM3-W6/M1/30: pilot-operated relief valve with 1/2" BSP threaded ports, for panel mounting with SKF KM9 ring nut, up to 75 l/min; range 5 up to 210 bar and 6 up to 350 bar; M1 = adjustment knob

The cartridges are adjusted with screw and lock nut. Check the manifold seat before choosing.

Source: Duplomatic CR, CRQ, DBV and RM*-W technical catalogue, versions 21 100/110 ED, 21 110/110 ED, 21 120/116 ED and 21 210/111 ED; Duplomatic Product Overview Industrial Hydraulics product guide.
