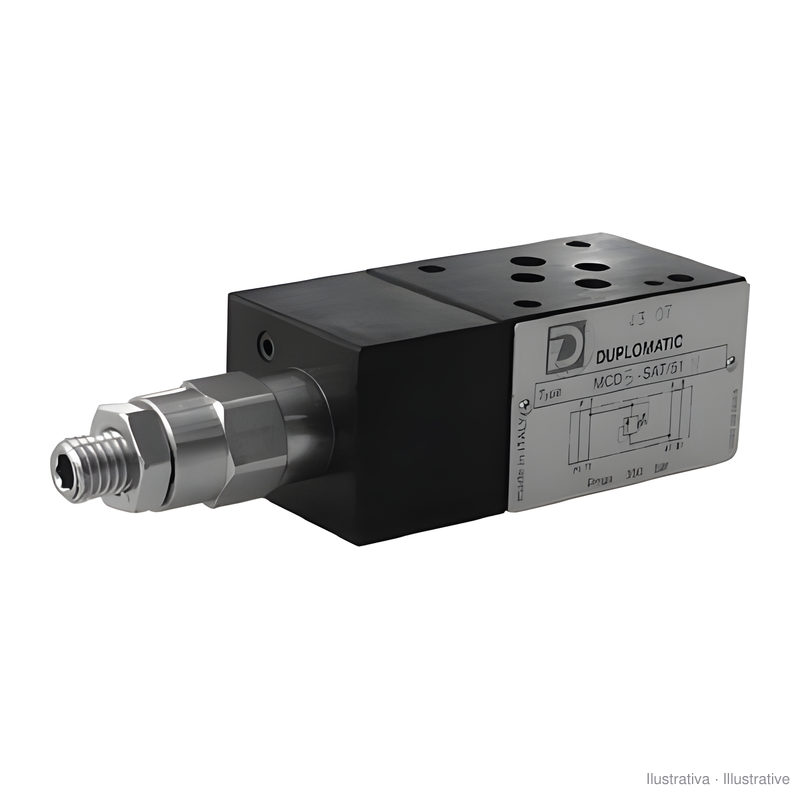

Duplomatic MCD4-SP/51 NG6 (CETOP 3) modular relief valve, P-T
search
  • Duplomatic MCD4-SP/51 NG6 (CETOP 3) modular relief valve, P-T

Duplomatic MCD4-SP/51 NG6 (CETOP 3) modular relief valve, P-T

* Price on request *
Price including VAT at the legal rate

Duplomatic MCD4-SP/51 direct-acting pressure relief valve, modular NG6 (CETOP 3), on line P relieving to T, up to 140 bar.

Quantity
Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MCD4SP

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Direct-acting relief valve in modular version, to fit as a sandwich on an NG6 (CETOP 3, ISO 4401-03) subplate, without pipes. The SP version limits the pressure on line P and relieves to T; the digit 4 gives the setting range up to 140 bar. Besides limiting circuit pressure, Duplomatic recommends it for cutting the peaks that appear when actuators move.

  • Maximum flow on the controlled line: 50 l/min; on the free lines: 75 l/min
  • Maximum working pressure: 350 bar
  • Adjustment by screw with lock nut; NBR seals
  • Series 51

If another range is needed, the MCD series also comes up to 25, 70, 210 and 350 bar.

Source: Duplomatic MCD technical catalogue, version 61 200/110 ED.

D.MCD4SP

Data sheet

CETOP interface
NG6 (CETOP 3)

Specific References

Internal barcode
2200111721223
MPN
MCD4-SP/51
