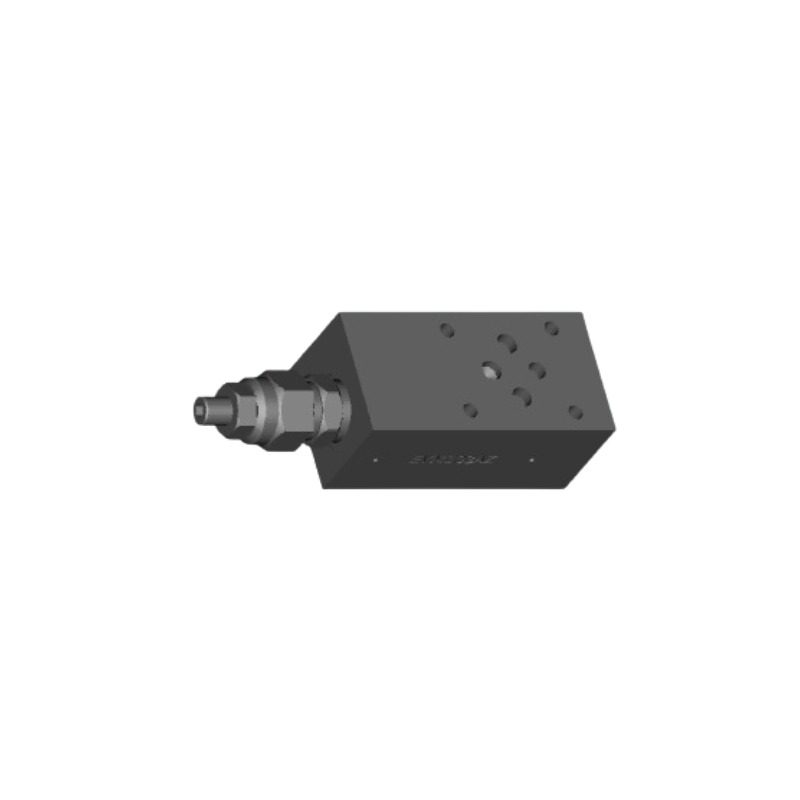

Eurofluid EVM NG6 (CETOP 3) modular relief valve

Name: Eurofluid EVM NG6 (CETOP 3) modular relief valve
Availability: InStock

€97.41

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(79.2 € Excluding VAT. VAT at the legal rate applies.)

Eurofluid EVM modular pressure relief valves, NG6 (CETOP 3), direct acting, to set P, A, B or A and B, with discharge to T or crossed.

Sandwich relief valve: A-T 50-210 bar (EVM103AX2F)

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.6290.EVM103AX2

€79.20 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Direct-acting relief valves to fit as a sandwich in an NG6 (CETOP 3) stack, without pipes. All versions in the list have the VS30 relief valve fitted and key adjustment.

EVM103PX2F: sets line P, discharge to T, 50 to 210 bar
EVM103AX2F: sets line A, discharge to T, 50 to 210 bar
EVM103BX2F: sets line B, discharge to T, 50 to 210 bar
EVM103ABX2F and EVM103ABX3F: set A and B, each line with its own valve, discharge to T; 50 to 210 or 100 to 350 bar
EVM203ABX3F: sets A and B with crossed discharge (A to B and B to A), 100 to 350 bar

How to read the code: 103 means discharge to T and 203 crossed discharge; the digit before the F is the spring (2 = 50-210 bar, 3 = 100-350 bar).

Source: Eurofluid Hydraulic General Catalogue technical catalogue.

Reference 1.6290.EVM103AX2
