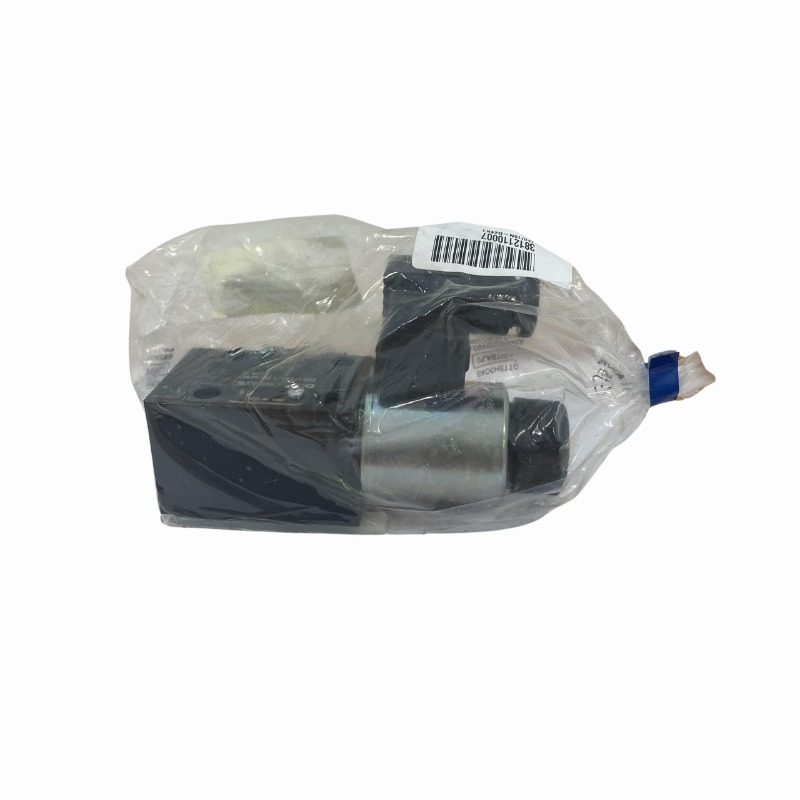

Duplomatic PRE / PRED3 proportional relief valve

Name: Duplomatic PRE / PRED3 proportional relief valve
Brand: Duplomatic
Availability: InStock

€1,071.01

Tax included Delivery in 1 to 5 working days.

(870.74 € No tax)

Duplomatic proportional relief valves: pilot-operated PRE10 and PRE25, up to 200 and 400 l/min, and direct-acting PRED3, NG6 (CETOP 3).

Model: Pressure PRE10-140/10ND24K1

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.PRE1014024

€870.74 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Duplomatic pressure relief valves with electric proportional control. The set pressure varies in proportion to the solenoid current, so the circuit pressure can be changed by the PLC or an electronic card during the machine cycle.

PRE10-140, PRE10-210 and PRE10-350: pilot operated, ISO 6264-06 interface, up to 200 l/min
PRE25-210: pilot operated, ISO 6264-08 interface, up to 400 l/min
PRED3-140: direct acting, ISO 4401-03 interface, NG6 (CETOP 3), flow up to 3 l/min; used to pilot two-stage valves or to control pressure in small circuits

The PRE valves have a manual relief valve factory set about 15% above the top of the range, as protection. The number after the type is the maximum adjustable pressure, in bar. All options have a 24 V DC solenoid and DIN 43650 plug.

Source: Duplomatic PRE* technical catalogue, version 81 310/112 ED; Duplomatic PRED3 technical catalogue, version 81 210/115 ED.
