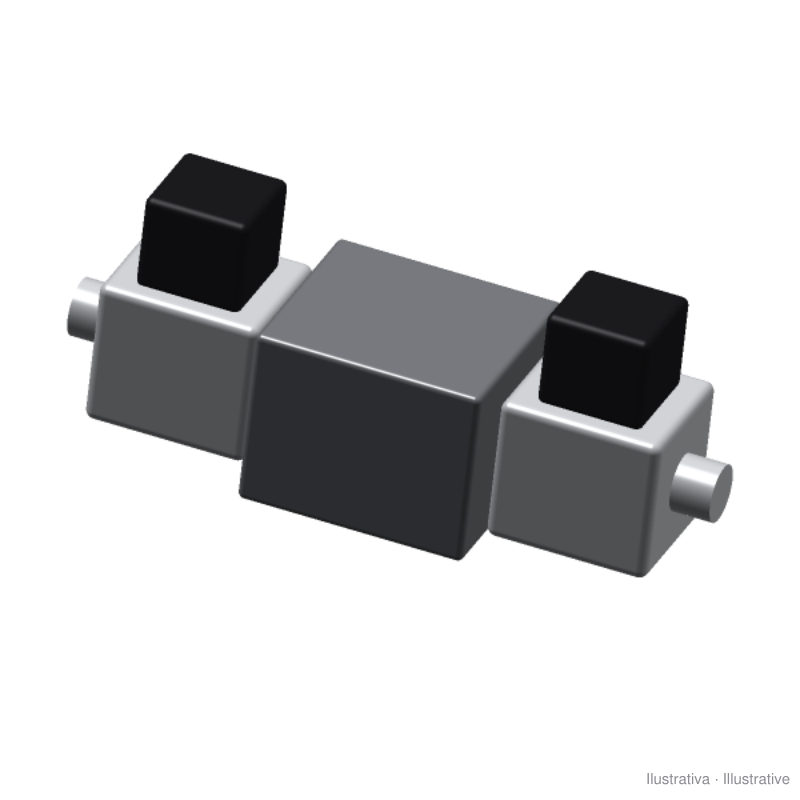

Argo-Hytos PRM6-103Z11/60-24E1K1 proportional directional valve NG10 (CETOP 5)

Name: Argo-Hytos PRM6-103Z11/60-24E1K1 proportional directional valve NG10 (CETOP 5)
Brand: Argo Hytos
SKU: AH.17083800
Price: 1134.44 EUR
Availability: InStock

€1,134.44

Price including VAT at the legal rate

(922.31 € Excluding VAT. VAT at the legal rate applies.)

Argo-Hytos PRM6 proportional directional valve, NG10 (CETOP 5), up to 350 bar and 60 l/min nominal, 24 V DC solenoids.

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.17083800

€922.31 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Argo-Hytos PRM6 direct-acting proportional directional valve, size NG10 (CETOP 5), with ISO 4401-05 interface. It controls the direction and speed of cylinders and hydraulic motors: the flow varies in proportion to the electrical command signal.

Maximum pressure: 350 bar at P, A and B; 210 bar at T
Nominal flow: 60 l/min at Δp 10 bar (code /60)
Spool 3Z11
24 V DC solenoids, limit current 1.1 A, IP65 protection
E1K1: EN 175301-803 (DIN 43650) plug, no on-board electronics

An external electronic card is needed to control it, for example the Argo-Hytos EL7-E for DIN rail. Check the full code on the nameplate before ordering; the PRM6-10 datasheet is in the attachments.

Source: Argo-Hytos PRM6-10 data sheet, HA 5115, 10/2023.
