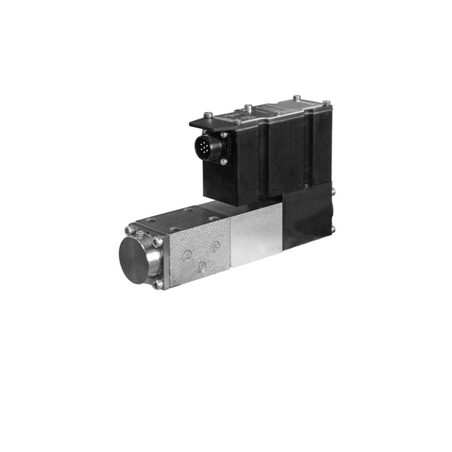

Duplomatic DXE3J-LZ40F3/31N-E0K11C servo-proportional valve NG6 (CETOP 3)

* Price on request *

Tax included

Duplomatic DXE3J servo-proportional valve, NG6 (CETOP 3), with on-board electronics and position transducer, 40 l/min, up to 350 bar.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DXE3JLZ40F324

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Duplomatic DXE3J four-way servo-proportional valve with fail-safe position, size NG6 (CETOP 3, ISO 4401-03), with on-board electronics and spool position transducer (LVDT). The spool runs in a sleeve and the electronics control its position in closed loop, with high accuracy and repeatability. It is used for closed-loop position, speed and pressure control, for example on presses and injection moulding machines.

Reading the code:

LZ40: zero overlap spool, 40 l/min at Δp 70 bar
F3: float fail-safe position, which the spool takes without power or without the enable signal
/31N: series 31, NBR seals
E0: voltage command signal, ±10 V
K11C: 6-pin + PE connector, with pin C as 0 V monitor

Maximum pressure 350 bar at P, A and B and 250 bar at T; response time up to 10 ms.

Source: Duplomatic DXE3J technical catalogue, version 85 120/116 ED.
