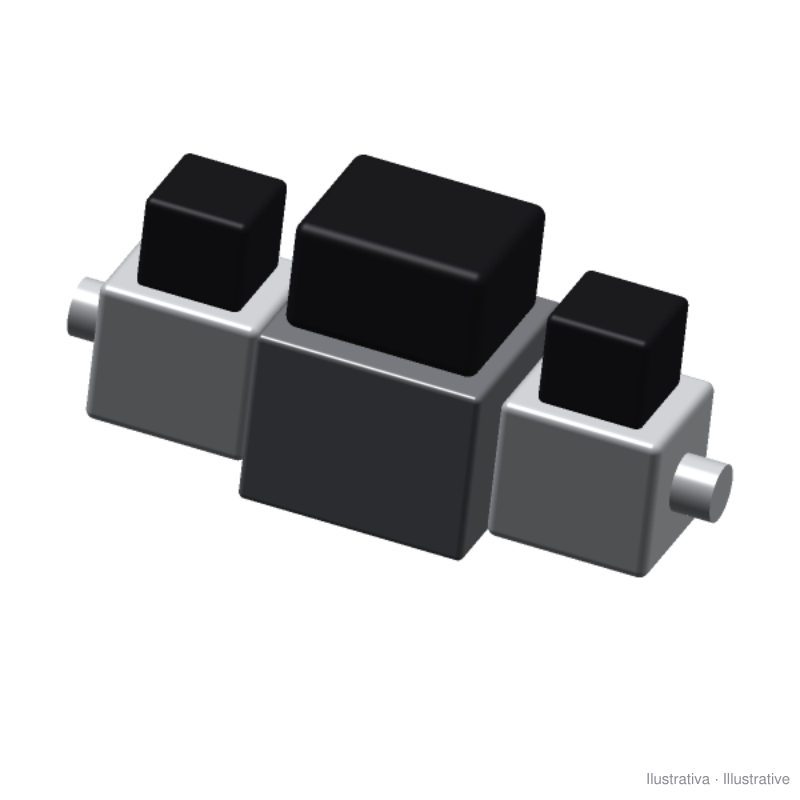

Argo-Hytos PRM9-063Z11/15-24E04S02 proportional directional valve with on-board electronics NG6 (CETOP 3)

Name: Argo-Hytos PRM9-063Z11/15-24E04S02 proportional directional valve with on-board electronics NG6 (CETOP 3)
Brand: Argo Hytos
SKU: AH.40436700
Price: 2956.54 EUR
Availability: InStock

€2,956.54

Tax included

(2403.69 € No tax)

Argo-Hytos PRM9 proportional directional valve, NG6 (CETOP 3), with digital on-board electronics and spool position feedback.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.40436700

€2,403.69 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Argo-Hytos PRM9 proportional directional valve, size NG6 (CETOP 3), with digital on-board electronics (OBE) and spool position feedback from a transducer. Because the electronics measure the actual spool position and correct it, the valve has less hysteresis and responds faster than a proportional valve without feedback. It is used for position and speed control of cylinders and motors.

Maximum pressure: 350 bar; maximum flow: 30 l/min
Spool 3Z11, nominal flow 15 l/min (code /15)
24 V DC supply
E04S02: internal spool feedback plus an input for an external sensor, on an M12 connector
Main connection with a 6-pin + PE MIL-C5015 connector

Parameters (ramps, dead band, maximum current) are set with software through the micro-USB port. Check the code on the valve nameplate before ordering.

Source: Argo-Hytos PRM9-06 data sheet, HA 5129, 05/2019.
