Marchesini VSQAPP sequence valve
search
  • Marchesini VSQAPP sequence valve

Marchesini VSQAPP sequence valve

€85.75
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(69.71 € Excluding VAT. VAT at the legal rate applies.)

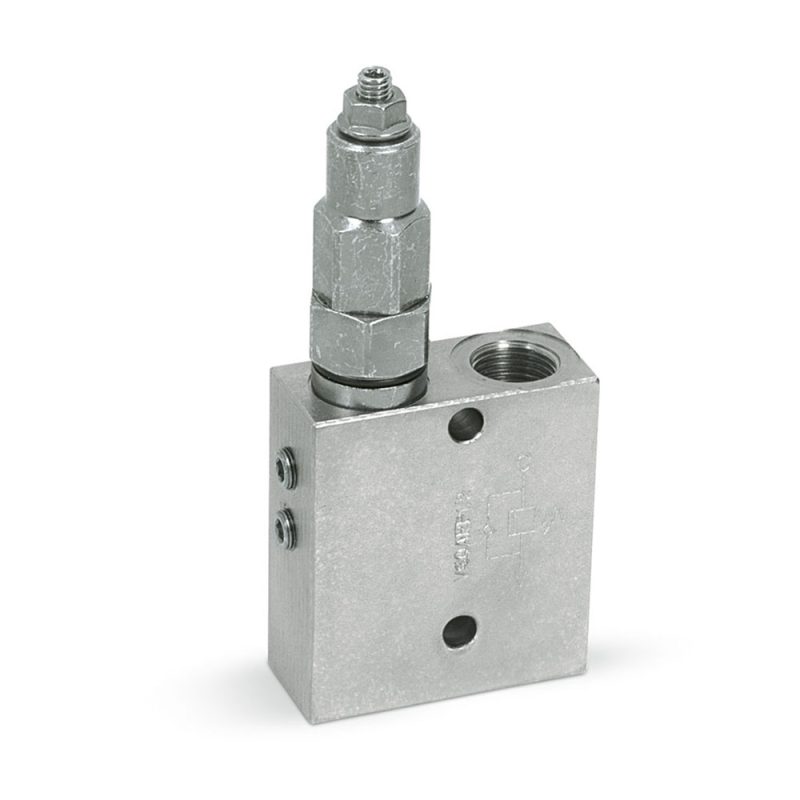

Marchesini VSQAPP sequence valve, insensitive to back pressure, 3/8" to 3/4", also with handknob.

Sequence valves: 3/8" - V0642
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA02.V0642

€69.71 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VSQAPP runs two actuators in order of pressure, like the VS2C, but it is not sensitive to back pressure: the pressure set in the circuit is used to drive both actuators instead of adding up. When the pressure at V reaches the spring setting, the valve opens to C; from C to V the return is free through the built-in check valve.

  • 3/8" (V0642, V0642/50, V0642/100): up to 35 l/min
  • 1/2" (V0662, V0662/300, V0662/V): up to 70 l/min
  • 3/4" (V0667, V0667/50, V0667/200)

Maximum pressure 250 bar on the 3/8" and 1/2" sizes. Springs available: 10-50, 20-100, 10-180 (standard), 50-250 and 80-300 bar. The /V version has a handknob for adjustment by hand, without tools.

Source: Oleodinamica Marchesini technical catalogue, section Sequence valves.

1.MA02.V0642

Data sheet

Port thread
G 1/2
G 3/4
G 3/8

Specific References

Internal barcode
2200008696009
MPN
V0642

3 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (9)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
3/8" - V0642
1.MA02.V0642
In stock
3/8" - V0642/50
1.MA02.V064250
In stock
3/8" - V0642/100
1.MA02.V0642100
Last units
1/2" - V0662/V
1.MA02.V0662V
In stock
1/2" - V0662
1.MA02.V0662
In stock
1/2" - V0662/300
1.MA02.V0662300
In stock
3/4" - V0667
1.MA02.V0667
Last units
3/4" - V0667/50
1.MA02.V066750
On request
3/4" - V0667/200
1.MA02.V0667200
Last units
