Marchesini VSQL in-line sequence valve

Name: Marchesini VSQL in-line sequence valve
Availability: InStock

€111.51

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(90.66 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VSQL sequence valve, 1/2" and 3/4".

VSQL valve: 1/2" - V0643/140

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA02.V0643

€90.66 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

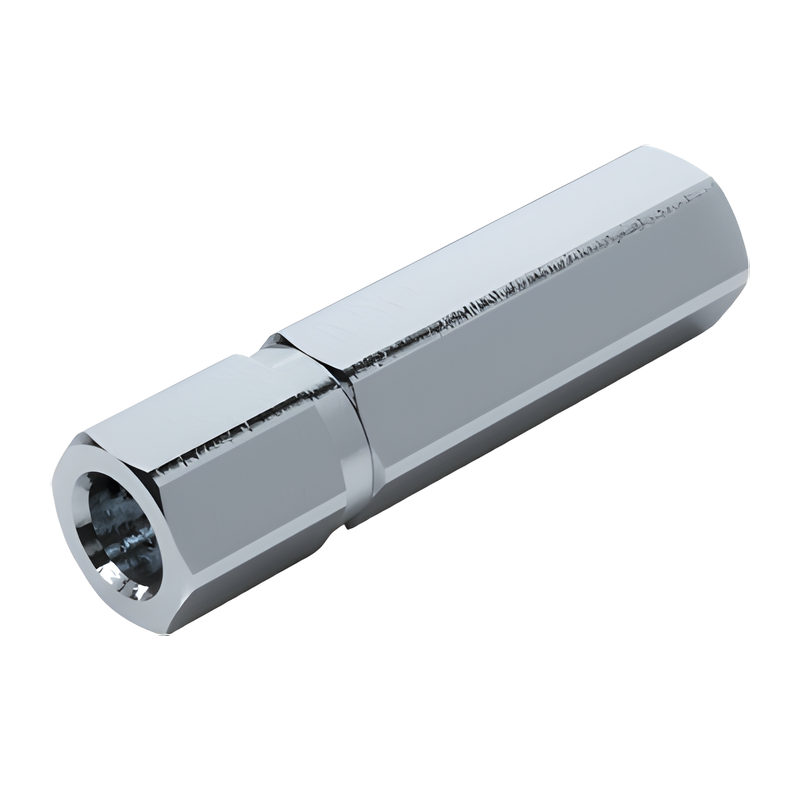

The VSQL is Marchesini's compact in-line sequence valve: a hexagonal body with female threads that opens from V to C when the pressure reaches the set value and lets oil return freely from C to V. It is used to feed a second cylinder only after the first has finished its stroke.

1/2" (V0643/140): up to 80 l/min
3/4" (V0645/250): up to 120 l/min
Maximum pressure 350 bar; springs for 20-230 bar or 230-350 bar

It is direct acting: the pressure of the second actuator adds to the set pressure, so it suits circuits where that actuator works at low pressure. Zinc-plated steel body and NBR seals. For 3/8" there is the VSQL V0646.

Source: Oleodinamica Marchesini general catalogue 2018.

Reference 1.MA02.V0643

Data sheet
