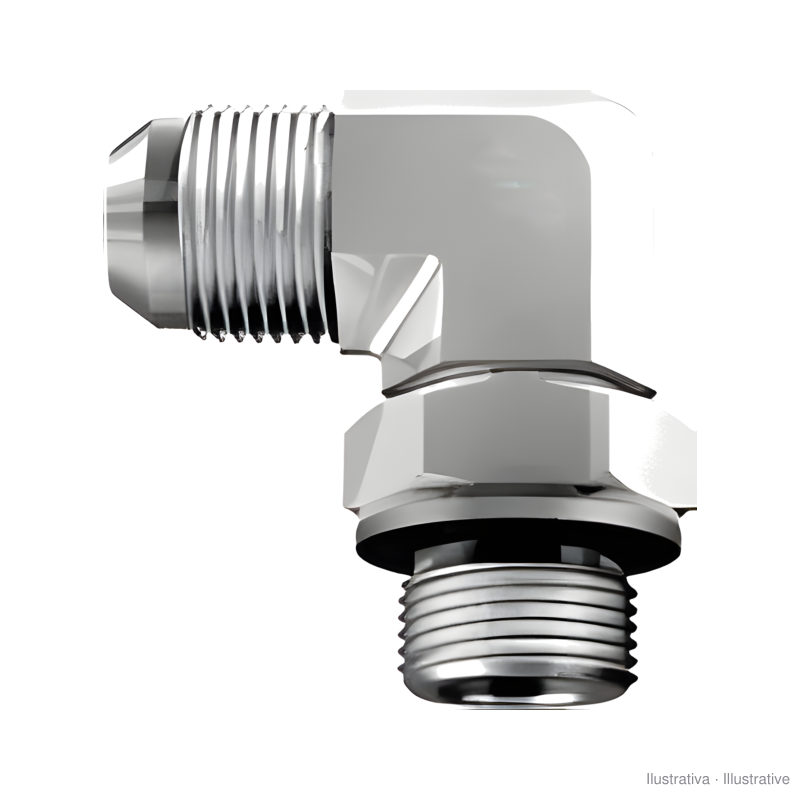

90° male-male JIC-DIN elbow (S625)

Name: 90° male-male JIC-DIN elbow (S625)
Availability: InStock

* Price on request *

Price including VAT at the legal rate

90° elbow with a male JIC 37° end and a male DIN metric thread, for metric ports. S625 series, in 1/2"-M12x1.5 and 3/4"-M18x1.5.

JIC accessory: 1/2" - M12x1.5

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0619.12M12

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

90° elbow, S625 series, which connects a metric threaded port to a JIC hose fitting. The metric male screws into the port; the female JIC hose fitting goes on the male JIC 37° end.

There are two combinations: JIC 1/2" with M12x1.5 and JIC 3/4" with M18x1.5.

Before ordering, check the thread and pitch of the metric port and how the port seals (cone, washer or O-ring), as this varies from machine to machine on metric threads.

Reference 1.0619.12M12

Specific References
