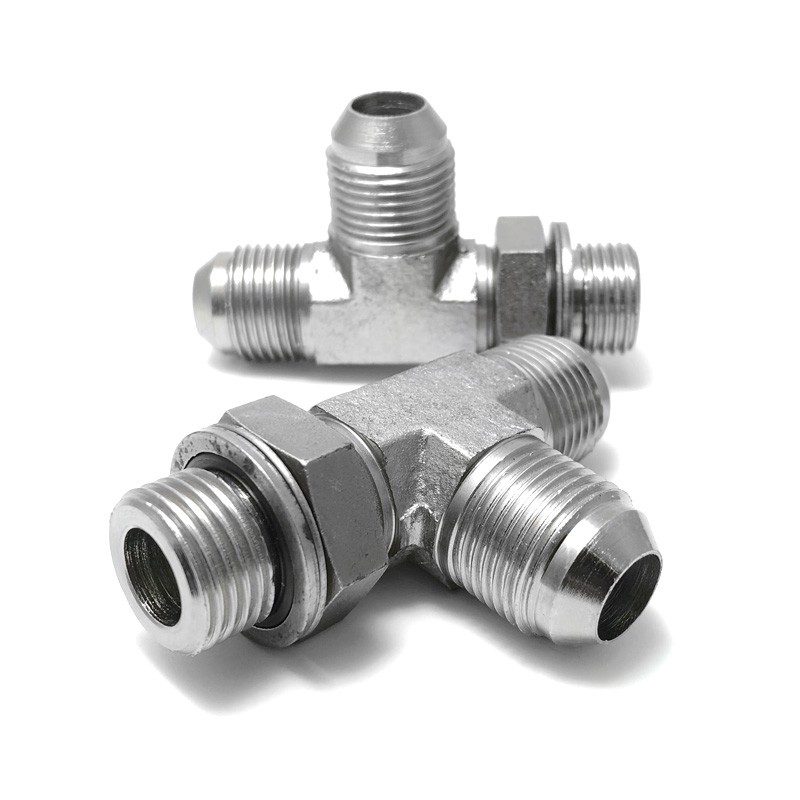

Male-male-male JIC-BSP tee (S605)

Name: Male-male-male JIC-BSP tee (S605)
Availability: InStock

€30.50

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(24.8 € Excluding VAT. VAT at the legal rate applies.)

Tee with two male JIC 37° ends and one male BSP end, to take two JIC connections from a single BSP port. S605 series.

JIC accessory: 1.1/16" - 3/4"

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0608.111634

€24.80 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Tee, S605 series, with a male BSP end that screws into the port of the pump, manifold or valve, and two male JIC 37° ends for the female JIC hose fittings. It takes two lines from a single port, without a separate adapter and tee.

There are 5 combinations: JIC 9/16" with BSP 1/4", JIC 3/4" with BSP 3/8" or 3/4", JIC 7/8" with BSP 1/2" and JIC 1.1/16" with BSP 3/4". In the option list the first size is the JIC and the second the BSP.

Check the port thread before ordering: a 1/2" BSP male measures about 20.9 mm across the thread and a 3/4" about 26.4 mm.

Reference 1.0608.111634
