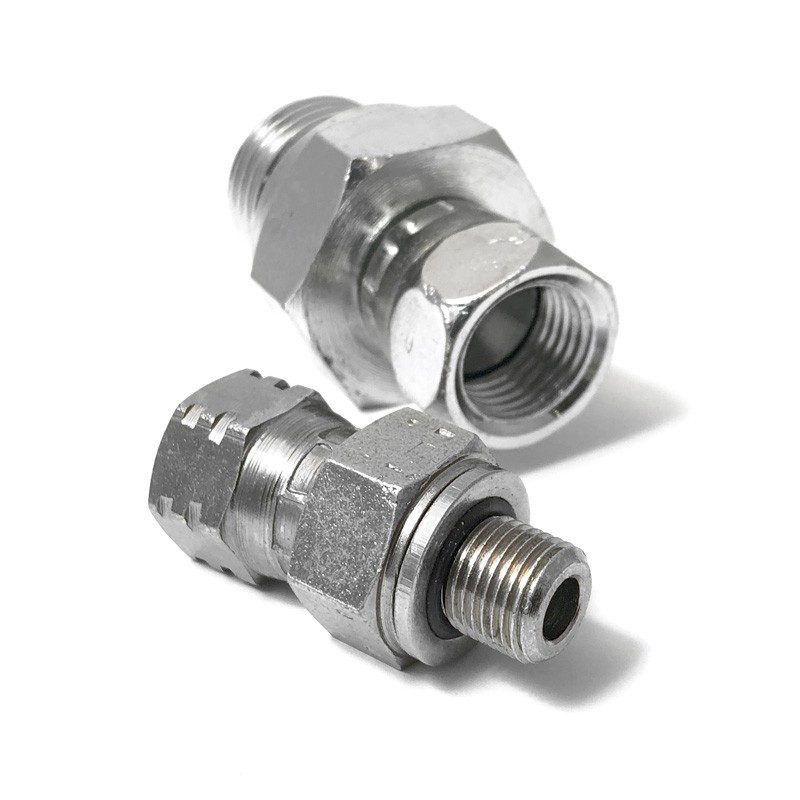

Female-male JIC-BSP union (S180)

€11.71
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(9.52 € Excluding VAT. VAT at the legal rate applies.)

Straight union with a female JIC 37° nut and a male BSP end, to connect a male JIC end to a BSP port. S180 series, JIC from 7/16" to 1.5/8".

JIC accessory: 1.1/16" - 1/2"
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0614.111612

€9.52 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Straight union, S180 series. The male BSP end screws into the port of the pump, manifold or valve, and the female JIC nut tightens onto a male JIC end: that of an adapter, a tee or another part with a 37° cone.

There are 16 combinations, with JIC from 7/16" to 1.5/8" and BSP from 1/8" to 1.1/4". In the option list the first size is the JIC and the second the BSP: 9/16" - 3/8", for example, is JIC 9/16" with BSP 3/8".

Check both threads before ordering: a 3/8" BSP male measures about 16.7 mm across the thread and a 1/2" about 20.9 mm; on the JIC side, measure the male end the nut will tighten onto.

1.0614.111612

Specific References

Internal barcode
2200111625002

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (16)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
7/16" - 1/8"
1.0614.71618
In stock
7/16" - 1/4"
1.0614.71614
In stock
1/2" - 1/4"
1.0614.1214
In stock
9/16" - 1/4"
1.0614.91614
Last units
9/16" - 3/8"
1.0614.91638
In stock
9/16" - 1/2"
1.0614.91612
On request
3/4" - 1/4"
1.0614.3414
In stock
3/4" - 3/8"
1.0614.3438
In stock
3/4" - 1/2"
1.0614.3412
In stock
7/8" - 3/8"
1.0614.7838
In stock
7/8" - 1/2"
1.0614.7812
Last units
7/8" - 3/4"
1.0614.7834
In stock
1.1/16" - 1/2"
1.0614.111612
Last units
1.1/16" - 3/4"
1.0614.111634
In stock
1.5/16" - 1"
1.0614.15161
Last units
1.5/8" - 1.1/4"
1.0614.158114
Last units
