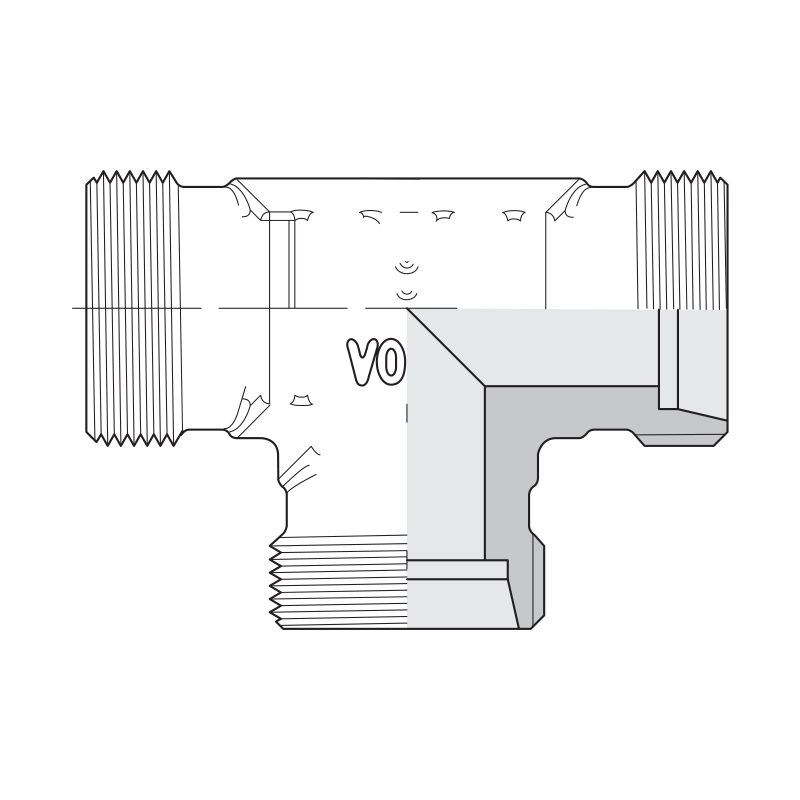

T tube-tube-tube tee

Tee with all three ends for DIN 2353 tube (ISO 8434-1, 24° cone), each for use with a nut and cutting ring. It splits one rigid tube line into two or joins two into one.

• L series (6 to 42 mm) and S series (6 to 38 mm)
• Sold as the body only: the DIN nut and cutting ring are sold separately and are listed in this item's accessories
• Nominal pressure in the VOSS datasheet: L series 500 bar up to 10 mm, 400 bar from 12 to 18 mm and 250 bar from 22 to 42 mm; S series 800 bar up to 10 mm, 630 bar from 12 to 16 mm and 420 bar from 20 to 38 mm

All three tubes are the same diameter and series; to connect a smaller tube on one branch, add a KOR reducer. Choose by the tube outside diameter and the series (L or S), which you can tell from the nut thread: 12L takes an M18x1.5 nut and 12S an M20x1.5 nut.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.
