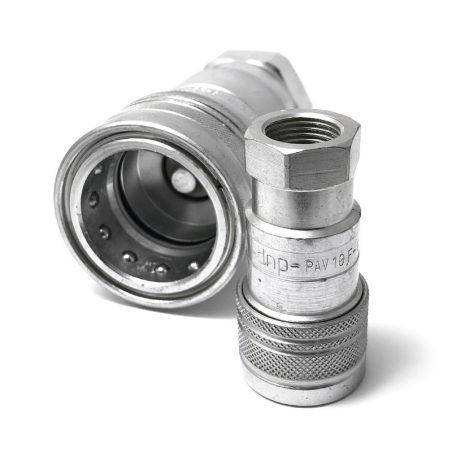

DNP PAV1 ISO-A female quick coupling

Name: DNP PAV1 ISO-A female quick coupling
Brand: D.N.P. Industriale Srl
Availability: InStock

€44.68

Tax included Delivery in 1 to 5 working days.

(36.32 € No tax)

DNP PAV1 female quick coupling, ISO-A type (ISO 7241-A), with BSP female thread from 1/4" to 1.1/2".

Quick coupling: 1" - PAV1.2525.002

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.4502.1

€36.32 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

DNP PAV1 series female quick coupling to ISO 7241-A, with poppet valve and ball locking. It is the most common coupling type for the hydraulic connections between tractors and implements, and is also widely used on industrial machines.

Steel body with zinc-iron plating, NBR seals
Working pressure: 350 bar in 1/4" and 3/8", 250 bar from 1/2" to 1", 200 bar in 1.1/4" and 190 bar in 1.1/2"
Working temperature from -25 °C to +100 °C
Cannot be connected with residual pressure in the circuit

The size in the list is the BSP connection thread (DNP codes ending in .002). It connects to the PAV1 male of the same size and to ISO 7241-A males from other makes, such as Parker 6600, Faster ANV or Stucchi IA.

Source: DNP hydraulic quick release couplings technical catalogue, 2023.
