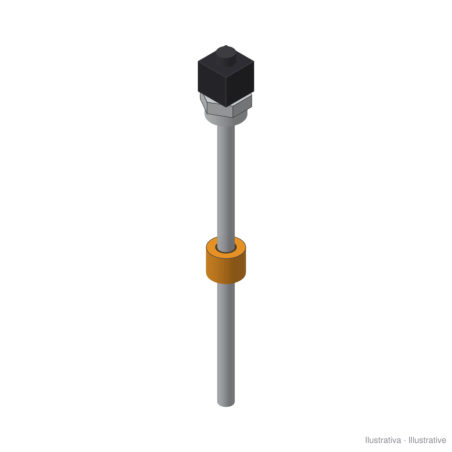

Bühler NT-M-MS-G3/4-M3/150-2K-L1-40NC-L2-80NO level switch with low and high signal
search
  • Bühler NT-M-MS-G3/4-M3/150-2K-L1-40NC-L2-80NO level switch with low and high signal

Bühler NT-M-MS-G3/4-M3/150-2K-L1-40NC-L2-80NO level switch with low and high signal

€170.99
Price including VAT at the legal rate

(139.01 € Excluding VAT. VAT at the legal rate applies.)

Bühler NT-M 150 mm level sensor, with low and high level signals.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. BULNTM1502K

€139.01 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Bühler Nivotemp NT M level switch, with brass (MS) body and tube, G3/4 thread for the tank top and 150 mm length. It has two level contacts (2K): the first at dimension L1 = 40 mm, NC type, and the second at L2 = 80 mm, NO type.

  • Contacts: up to 230 V AC/DC, 0.5 A and 10 VA
  • M3 connector (DIN EN 175301-803, 3 pins + earth), IP65
  • Up to 1 bar, from -20 to +80 °C
  • SK 161 NBR float; minimum oil density: 0.80 kg/dm³

For Bühler, NC means the contact closes as the level falls and NO that it opens as the level falls. Check that the control panel is wired for this logic.

Source: Bühler Nivotemp NT M, NT MD data sheet, DE100211, 01/2022.

BULNTM1502K

Data sheet

Filter or element
Accessory

Specific References

Internal barcode
2200111743904
MPN
1002105251008000
