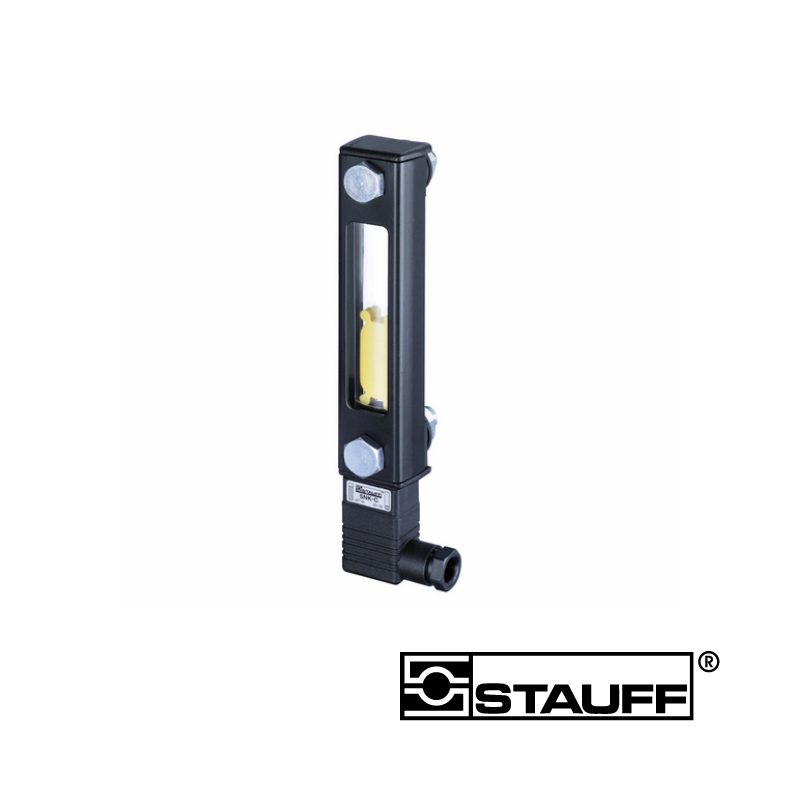

Stauff SNK-127-V-O-O-12 oil level gauge with low-level electrical signal
€178.69
Price including VAT at the legal rate
(145.28 € Excluding VAT. VAT at the legal rate applies.)
Stauff SNK-127 127 mm oil level gauge, with low-level electrical signal.
Stauff SNK oil level gauge with 127 mm between M12 bolts, combining visual reading with a low-level electrical contact. A magnetic float inside the tube operates the contact when the oil drops below the contact level, about 60 mm above the lower bolt.
- Contact: opens at low level (normally closed), with industrial standard connector
- No thermometer; M12 bolts
- Black painted aluminium housing, polyamide tube and float, FKM (Viton) seals
- Up to 50 V AC/DC, 0.25 A and 5 W; IP65 protection
- Maximum tank pressure: 2 bar; temperature: from -30 to +80 °C
- Recommended tightening torque: 8 Nm
Wired in series in the control circuit, the contact lets the power unit stop or raise an alarm before the pump draws in air.
Source: Stauff Catalogue 10 technical catalogue, Fluid Level and Temperature Indicators, edition 08/2019.
1.2061.127E
