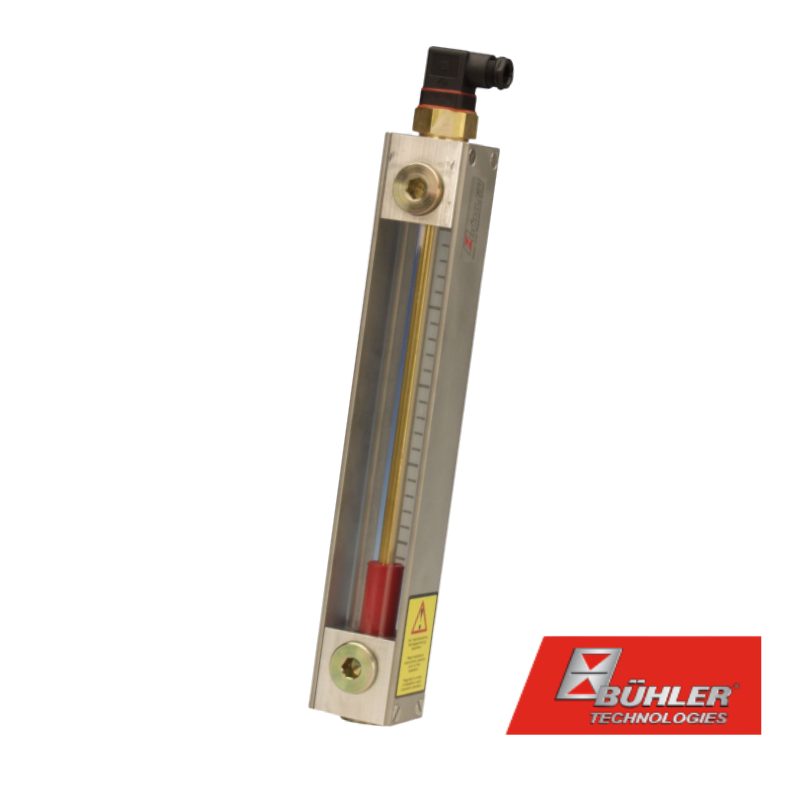

Bühler NS 1/G1/2-AM-M3/280-1K level gauge with low-level signal

* Price on request *

Tax included

Bühler NS 1 externally mounted level gauge, 280 mm, with an electrical contact for the low level.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. BULNS2801K

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Bühler NS 1 series level gauge, mounted outside the tank as a bypass, with G1/2 connection. The oil rises in a tube parallel to the tank so the level can be seen from outside; a magnetic contact gives the low-level electrical signal.

Length: 280 mm
One level contact (1K), for the low level
M3 connector (3 pins + earth)
NS 1 series: up to 1 bar, lengths up to 800 mm

The NS 1-G1/2-AM data sheet is in the attachments. Check the distance between the tank connections and the contact type (opening or closing at low level) expected by the control panel.

Source: Bühler Fluidcontrol Quick Product Overview technical catalogue.
