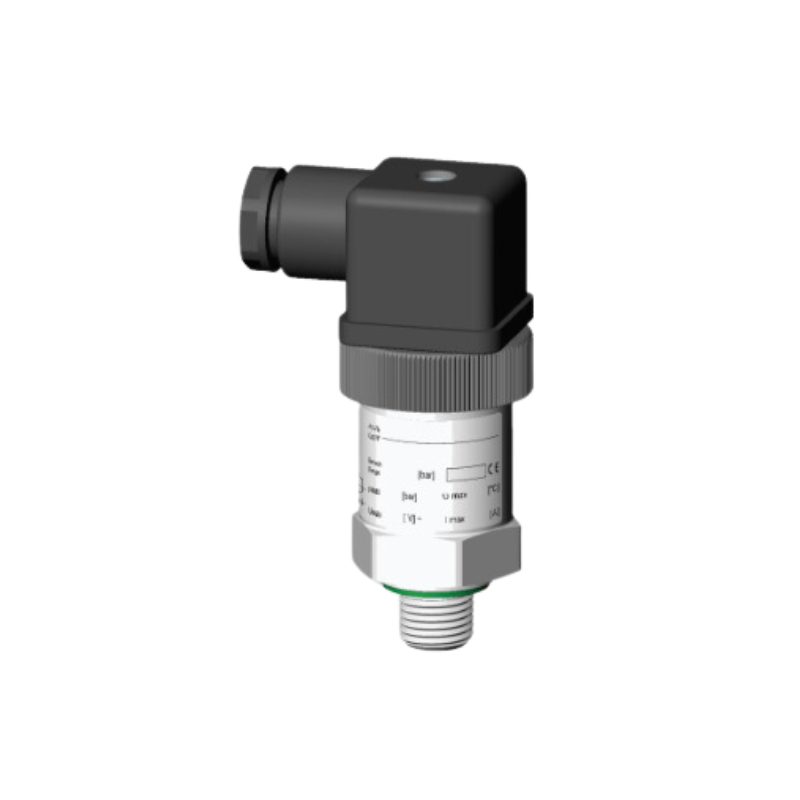

Bühler MDS mechanical pressure switch

Name: Bühler MDS mechanical pressure switch
Brand: Bühler
Availability: InStock

€127.15

Tax included Delivery in 1 to 5 working days.

(103.37 € No tax)

Bühler MDS mechanical pressure switch with adjustable switching point, in ranges from 1-16 bar to 30-320 bar.

Bühler: 1-16 bar - G1/8"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0320.116

€103.37 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Bühler MDS series mechanical pressure switch, to monitor pressure in hydraulic and lubrication circuits: it has a changeover contact (microswitch) that switches when the pressure reaches the set point. It can be mounted in any position.

1-16 bar, G 1/8" thread: membrane version, up to 60 bar working pressure.
10-120, 20-250 and 30-320 bar, G 1/4" thread: piston version, up to 350 bar.
Switching point accuracy: ± 2 % of full scale.
Galvanised steel body; thread seal to DIN 3852 form E.

Ex works, the switching point is set at about 40 % of the range. Before ordering, check the range, the thread and the connector type (DIN EN 175301-803 or M12) of the switch you are replacing.

Source: Bühler Mechanical Pressure Switches MDS data sheet, DA130203, 06/2024.
