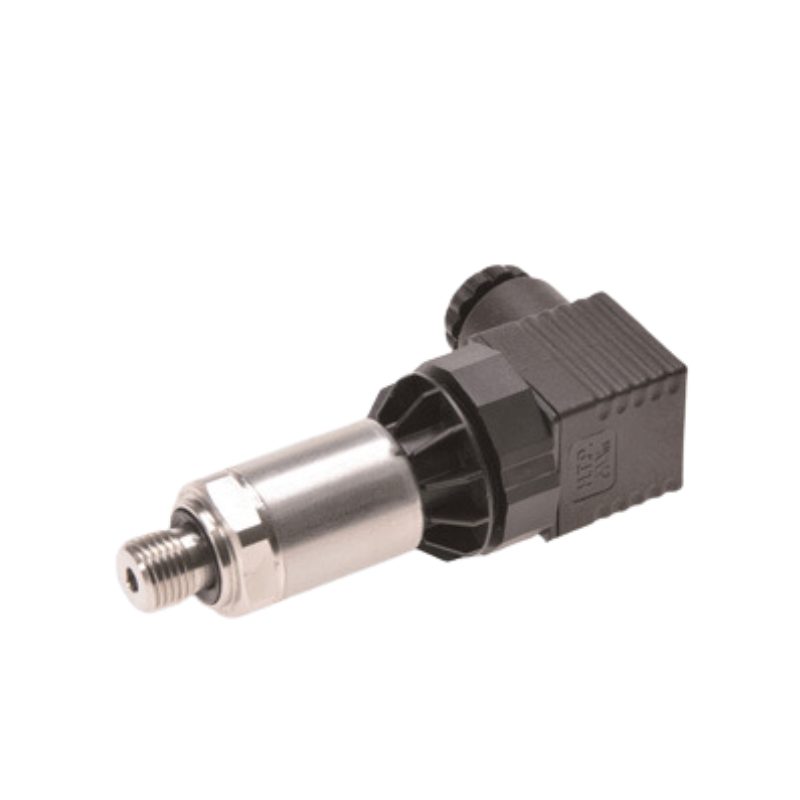

Bühler pressure transducer 4-20 mA, DIN connector

Name: Bühler pressure transducer 4-20 mA, DIN connector
Brand: Bühler
Availability: InStock

* Price on request *

Tax included

Bühler pressure transducer with 4-20 mA output and DIN connector.

Transducer: 60 bar

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0321.42060

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Bühler pressure transducer with 4-20 mA output: it converts the circuit pressure into a proportional current signal, to be read by a PLC, a display or a controller. A current signal copes well with long cables and electrically noisy surroundings.

Ranges available with DIN connector (EN 175301-803): 0-60, 0-100, 0-160, 0-250, 0-400, 0-600 and 0-1000 bar; 0-160 and 0-600 bar also with 4-pin M12x1 connector. The attached Pressotronik 702 data sheet does not cover all these ranges: please check with us the supply voltage, thread and accuracy of the range you choose.

Before ordering, check the range, connector and thread of the transducer you are replacing.
