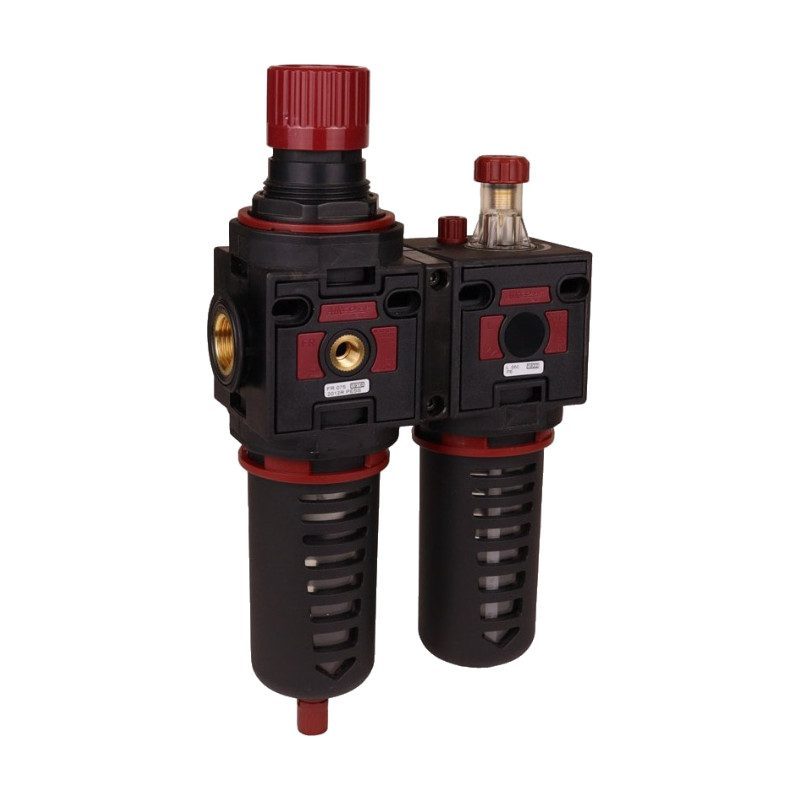

Aircomp FR+L unit G1/2 Line 075 with gauge (20 µm, 0-12 bar, semi-automatic drain)

Aircomp FR+L 1/2" 075 20 12 R PE SS unit with pressure gauge (code 075.16.M0053). It combines a Line 075 filter regulator and lubricator, already assembled: the air comes out filtered, at the set pressure and with an oil mist for valves and cylinders.

• Inlet and outlet thread: G1/2
• 20 µm filtration; 0 to 12 bar regulation, with relieving
• Bowls with outer guard (PE); manual and semi-automatic drain (SS)
• Maximum working pressure: 12.5 bar; maximum ambient temperature: 50 °C (at 10 bar)
• Reference flow: 2200 Nl/min (at 6.3 bar, Δp 1 bar)

In the Aircomp catalogue, the M in the code stands for the unit supplied with gauge. For machines that must not receive oil in the air, the same line offers the filter regulator without lubricator.

Source: Aircomp air preparation units technical catalogue.
