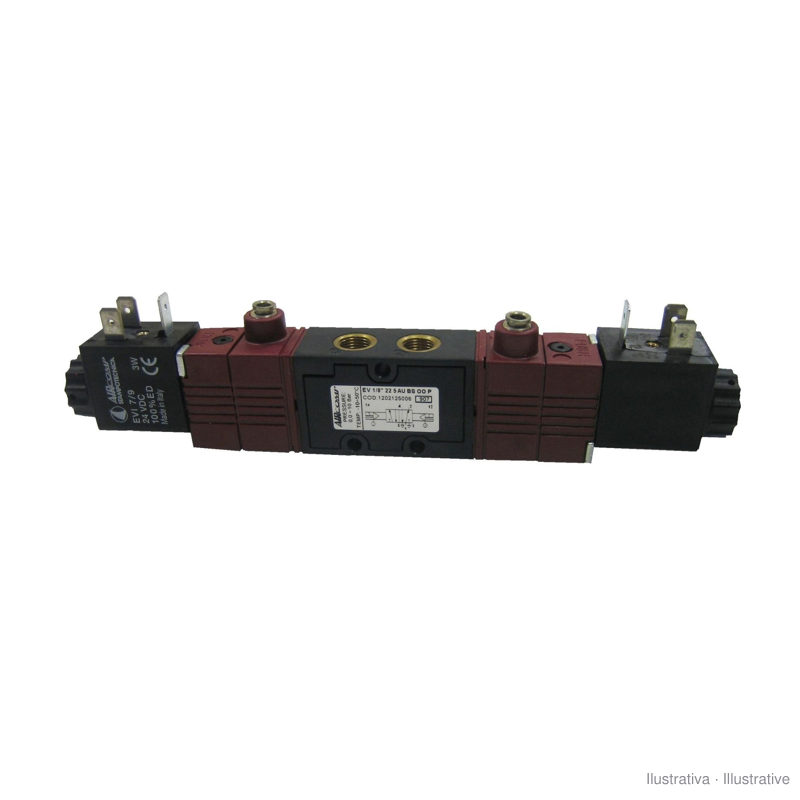

Aircomp 1202126005 5/3 open centre G1/8 solenoid valve, line 120, with external pilot
search
  • Aircomp 1202126005 5/3 open centre G1/8 solenoid valve, line 120, with external pilot

Aircomp 1202126005 5/3 open centre G1/8 solenoid valve, line 120, with external pilot

€49.14
Tax included Delivery in 1 to 5 working days.

(39.95 € No tax)

Aircomp line 120 5/3 open centre pneumatic solenoid valve, with G1/8 ports and separate pilot air supply. End-of-stock item.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1202126005

€39.95 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

5-way, 3-position solenoid valve, with a solenoid on each side, spring centring and pilot assisted by an external supply (EV 1/8" 22 6 SA RC CA P in the Aircomp catalogue). In the centre position, outlets 2 and 4 are connected to exhaust and the supply is closed: the cylinder is depressurised and can be moved by hand.

  • Ports: G1/8
  • Working pressure: 0 to 10 bar
  • Pilot supply pressure: 2 to 10 bar
  • Pilot port: M5 or Ø4 push-in fitting
  • 22 mm coils, sold separately: 12 V DC, 24 V AC, 110 V AC or 220 V AC
  • Weight: 0.118 kg

Please check on the machine diagram that an open centre is what is needed.

Source: Aircomp Valves technical catalogue.
